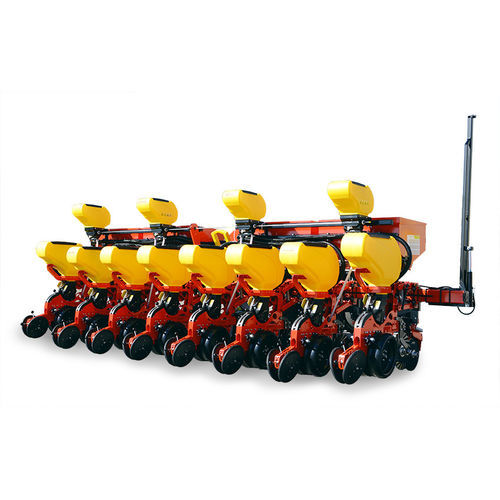

Pneumatic precision seed drill MS 8100disc6-rows4-row
Add to favorites
Compare this product
Characteristics
- Seed distribution
- pneumatic
- Type
- disc
- Number of rows
- 6-rows, 4-row, 8-row, 12-row
- Other characteristics
- tractor-mounted, 3-point hitch, rigid
- Inter-row spacing
45 cm, 75 cm
(17.7 in, 29.5 in)- Power required
Max.: 100 ch
(100 hp)Min.: 40 ch
(40 hp)- Weight
Max.: 1,370 kg
(3,020.3 lb)Min.: 580 kg
(1,278.7 lb)- Seed hopper volume
200 l, 300 l, 400 l, 600 l
(52.8 gal, 79.3 gal, 105.7 gal, 158.5 gal)- Fertilizer hopper volume
50 l, 75 l, 100 l, 150 l
(13.2 gal, 19.8 gal, 26.4 gal, 39.6 gal)
Description
MS 8100 precision planter is characterized for its simple structure and does not require specific adjustments. Planters are very compact because planting units are directly mounted on the tool bar and have a low overhanging weight.
MS8000-RS planting unit
“V” shaped 1” rubber closing wheels
Rigid tool bar
New cast-iron wheel support with Quick-Set system
3 point hitch
PTO 540 rpm (assembled on the fan);
PTO 750 rpm (for planters up to 7 rows);
PTO 1000 rpm (for planters with more than 7 rows)
Cardan shaft with free wheel 1” 3/8 Z6-Z6 (510 mm)
Vacuum meter
Hydraulic automatic disc row marker
Centralized gearbox 21 ratios
One set of seed plates
Partitioning wall for small seeds and dropping device
Seed emptying collector
Front drive wheels: 2 of 20x8.00-10 (200 mm)
NOTE: Requires 1 hydraulic connection to the tractor
