Pneumatic precision seed drill 3XL 400
disc16-row24-row

pneumatic precision seed drill
pneumatic precision seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
pneumatic
Type
disc
Number of rows
16-row, 24-row
Other characteristics
tractor-mounted, with fertilizer applicator, 3-point hitch
Inter-row spacing

45 cm, 50 cm, 70 cm
(17.7 in, 19.7 in, 27.6 in)

Power required

160 ch, 200 ch, 240 ch, 250 ch
(160 hp, 200 hp, 240 hp, 250 hp)

Weight

6,048 kg, 6,872 kg, 7,272 kg, 7,600 kg
(13,333.6 lb, 15,150.2 lb, 16,032 lb, 16,755.1 lb)

Seed hopper volume

840 l, 1,120 l, 1,680 l
(221.9 gal, 295.9 gal, 443.8 gal)

Fertilizer hopper volume

900 l, 1,150 l, 1,410 l
(237.8 gal, 303.8 gal, 372.5 gal)

Description

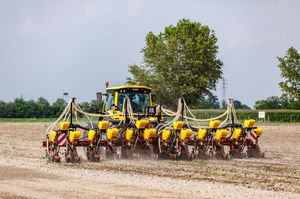

This planter was designed for big farms, suitable for sowing of main crops on tilled soil. The main tool bar is equipped with large support and transport wheels, it is also completed with hoisting and oscillating device where the planters are hitched on. The tool bar includes two draw bars, one for road transport and one to be used in working position. The reduced road transport width (3,75 meter) allows it to be move without difficulties. EQUIPMENT BASIC VERSION MS4000 Planting unit MS metering unit wind protection kit Double gear box with 21 ratios Vacuum meter One set of seed plates Hopper partitioning wall and dropping device for small seeds Seed emptying collector Seed hopper capacity: 70 L (35 L for 45 cm row distance) Seeding monitor: Monotronic 32 EQUIPMENT TOOL BAR 2 indpendent drill hitches with compensator 4 wheels size 480/45-17 Tractor dependent fan hydraulic drive (The required continuous oil flow is 40 Liters/Min with direct back-flow to the tank) Drawbar connection to tractor Transportation width 3.75 m 2 towing devices FRONT DRIVE WHEELS: 8 of 23x10.50-12 (230 mm) NOTE: Requires 3 hydraulic connections to the tractor

VIDEO
