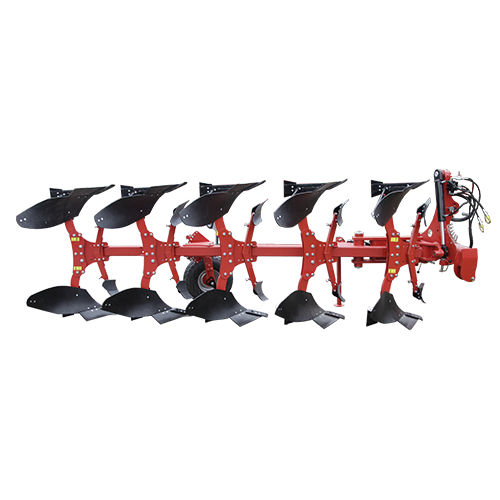

Mouldboard plow U061/1
mounted5-shankwith hydraulic adjustment

mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
mouldboard plow
Add to favorites
Compare this product


Characteristics

Form
mouldboard
Mobility
mounted
Number of shanks
5-shank
Other characteristic
with hydraulic adjustment, reversible, furrow
Width

Min.: 3.8 m
(12'05" )

Max.: 4.5 m
(14'09" )

Tractor power

Min.: 150 ch
(150 hp)

Max.: 200 ch
(200 hp)

Description

The 5-furrow plough is heavier and requires more traction power than its 4-furrow counterpart. The 5-furrow version weighs 1700 kg and needs 150 HP of traction power. The machine features the H4S helical mouldboard (950 x 350 mm), 2 hydraulic power ports, adjustable ploughing width, and a steel framework. The plough beam and turning screw diameter is 120 mm. The ploughing body spacing is 950 mm. The ground clearance is 800 mm. The machine features standard 170 x 585 m shares and 310 x 70 mm slicks. The machine’s standard accessories feature the levelling cylinder to keep the plough horizontally aligned when working the field. The plough can feature, as optional accessories, toughened slick, share and type C5 cylindrical mouldboard, as well as the 320/60-12 multifunctional wheel. You can also upgrade it with an adjustable height skim coulter.
