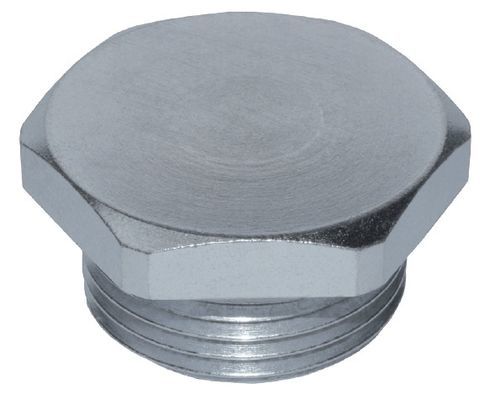

Blanking plug TC/V

Short description
Closing plug for fittings. Zinc-coated steel plug with neutral hex head. Supplied without external seal. Also available in all-threaded (full-thread) version.

Technical Info - GAS ISO 228
CODE | THREAD | t | f | e | s | WEIGHT (g)
1GTCO12V | 1/4" | 6 | 8 | 17 | 19 | 15
1GTCO21V | 3/8" | 6 | 9 | 22 | 24.5 | 24
1GTCO31V | 1/2" | 7 | 10 | 27 | 30.5 | 43
1GTCO40V | 3/4" | 8 | 12 | 32 | 36 | 99
1GTCO52V | 1" | 8 | 14 | 40 | 44.5 | 108

Technical Info - MB METRIC
CODE | THREAD | t | f | e | s | WEIGHT (g)
1MTCO10V | 14 x 1,5 | 6 | 8 | 17 | 19 |
1MTCO21V | 16 x 1,5 | 6 | 9 | 22 | 24.5 | 22
1MTCO30V | 18 x 1,5 | 6 | 9 | 22 | 24.5 | 26
1MTCO50V | 22 x 1,5 | 7 | 10 | 27 | 30.5 | 46

Technical characteristics / specifications

• Product: Closing plug (model TC/V)
• Material / Finish: Zinc-coated steel (neutral)
• Head type: Hex head
• Seal: Supplied without external seal
• Variants: Also available in all-threaded (full-thread) version
• Standards / Tables: GAS ISO 228 and MB METRIC (codes and dimensions provided)
• Available sizes: 1/4" to 1" and metric 14 x 1,5 to 22 x 1,5 (see tables)
