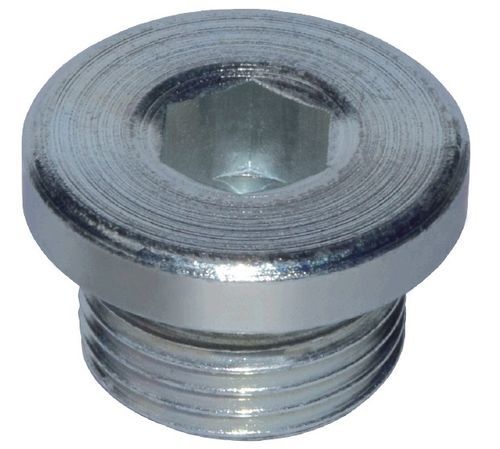

Blanking plug TCE/V

Product
Closing plug.
Zinc-coated steel plug with hex slot and NBR O-Ring. Metric sizes on request.

Technical Info - GAS ISO 228
CODE | THREAD | d | t | f | e | WEIGHT (g)
1GTBE00V | 1/8" | 14 | 3 | 6 | 5 | 2
1GTBE11V | 1/4" | 19 | 5 | 11 | 6 | 10
1GTBE22V | 3/8" | 22 | 4 | 10 | 8 | 21
1GTBE35V | 1/2" | 26 | 4 | 10 | 10 | 31

Characteristics / technical specifications

• Material: Zinc-coated steel
• Sealing: NBR O-Ring
• Head/drive: Hex slot (internal hexagon)
• Standards: GAS ISO 228
• Available threads/codes: 1GTBE00V (1/8"), 1GTBE11V (1/4"), 1GTBE22V (3/8"), 1GTBE35V (1/2")
• Dimensions (examples from table): d = 14–26 mm, t = 3–5 mm, f = 6–11 mm, e = 5–10 mm
• Weight range (from table): 2 g to 31 g depending on code/size
• Metric sizes available on request
