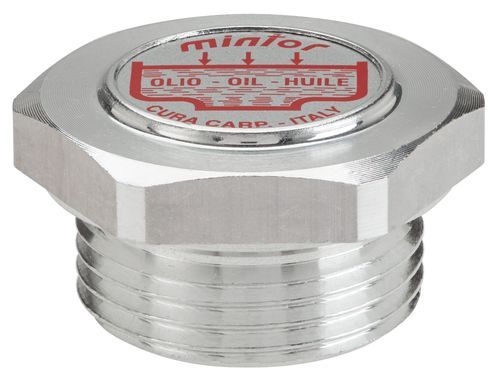

Filling plug TC

Product description
Filling plug for fluid reservoirs. Manufactured in aluminium alloy (untreated). Tight-sealing design offering high resistance to twisting and overheating. Anodizing treatment available on request.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TC0G | 1GTCO00A | 1/8" | 6.5 | 8 | 14 | 4
TC1G | 1GTCO10A | 1/4" | 7.5 | 8 | 17 | 6
TC2G | 1GTCO20A | 3/8" | 8.5 | 10 | 22 | 11
TC3G | 1GTCO30A | 1/2" | 8.5 | 10 | 27 | 17
TC4G | 1GTCO40A | 3/4" | 9.5 | 12 | 32 | 27
TC5G | 1GTCO50A | 1" | 9.5 | 14 | 40 | 43
TC6G | 1GTCO60A | 1" 1/4 | 11.5 | 15 | 50 | 85
TC7G | 1GTCO70A | 1" 1/2 | 11.5 | 15 | 55 | 112
TC8G | 1GTCO80A | 2" | 12 | 17 | 70 | 227

Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TC0M | 1MTCO00A | 10 x 1 | 6.5 | 8 | 14 | 5
TC1M | 1MTCO10A | 14 x 1.5 | 7.5 | 8 | 17 | 6.5
TC2M | 1MTCO20A | 16 x 1.5 | 7 | 10 | 22 | 10
TC3M | 1MTCO30A | 18 x 1.5 | 8.5 | 10 | 22 | 12
TC4M | 1MTCO40A | 20 x 1.5 | 8.5 | 10 | 24 | 15
TC5M | 1MTCO50A | 22 x 1.5 | 8.5 | 10 | 27 | 18

Characteristics / technical specifications

• Material: aluminium alloy (untreated). Anodizing available on request.
• Sealing: tight-sealing design for fluid retention.
• Mechanical resistance: high resistance to twisting and overheating.
• Standards / thread types: GAS ISO 228 (imperial) and MB metric (metric).
• Available variants: GAS series (TC0G–TC8G) and MB series (TC0M–TC5M) — see tables for codes, threads and weights.
