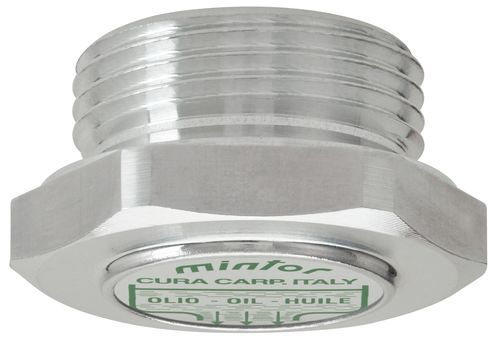

Drain plug TSC

Description

• Drain plug designed for tight sealing.
• Made of aluminium alloy, untreated by default; anodizing treatment available on request.
• High resistance to twisting and overheating.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TSC0G | 1GTSC00A | 1/8" | 6.5 | 8 | 14 | 4
TSC1G | 1GTSC10A | 1/4" | 7.5 | 8 | 17 | 6
TSC2G | 1GTSC20A | 3/8" | 8.5 | 10 | 22 | 11
TSC3G | 1GTSC30A | 1/2" | 8.5 | 10 | 27 | 17
TSC4G | 1GTSC40A | 3/4" | 9.5 | 12 | 32 | 27
TSC5G | 1GTSC50A | 1" | 9.5 | 14 | 40 | 43
TSC6G | 1GTSC60A | 1" 1/4 | 11.5 | 15 | 50 | 89
TSC7G | 1GTSC70A | 1" 1/2 | 11.5 | 15 | 55 | 112
TSC8G | 1GTSC80A | 2" | 12 | 17 | 70 | 227

Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | e | WEIGHT (g)
TSC0M | 1MTSC00A | 10 x 1 | 6.5 | 8 | 14 |
TSC1M | 1MTSC10A | 14 x 1.5 | 7.5 | 8 | 17 | 6
TSC2M | 1MTSC20A | 16 x 1.5 | 7 | 10 | 22 | 10
TSC3M | 1MTSC30A | 18 x 1.5 | 8.5 | 10 | 22 | 12
TSC4M | 1MTSC40A | 20 x 1.5 | 8.5 | 10 | 24 | 15
TSC5M | 1MTSC50A | 22 x 1.5 | 8.5 | 10 | 27 | 18

Product features / technical specifications

• Material: aluminium alloy (standard: untreated). Anodizing available on request.
• Sealing: tight-sealing design suitable for drain applications.
• Mechanical properties: high resistance to twisting and overheating.
• Standards / thread types: GAS ISO 228 (G-series) and MB metric (M-series) available.
• Available models and representative dimensions (see tables):
  • GAS ISO 228 examples: TSC0G (1/8", weight 4 g), TSC3G (1/2", weight 17 g), TSC8G (2", weight 227 g).
  • MB METRIC examples: TSC0M (10 x 1), TSC3M (18 x 1.5, weight 12 g), TSC5M (22 x 1.5, weight 18 g).
