Filling plug TC/Z

Product
Threaded filling plug for fluid systems

Overview

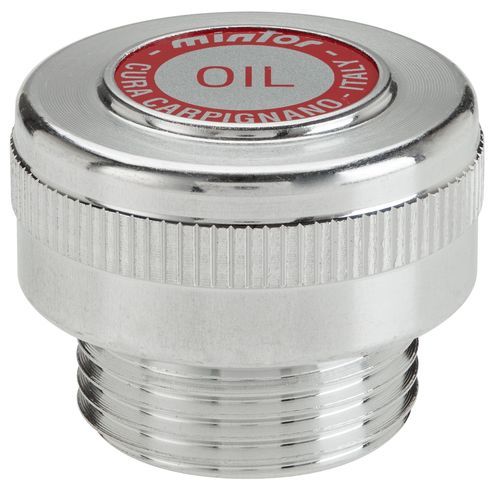

Threaded plug manufactured in aluminium alloy, supplied without surface treatment, with a knurled round head for hand-tightening. Anodizing treatment available on request.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TC/Z0G | 1GCZO00A | 1/8" | 13.5 | 8 | 20 | 11
TC/Z1G | 1GCZO10A | 1/4" | 12 | 8 | 22 | 13
TC/Z2G | 1GCZO20A | 3/8" | 13.5 | 10 | 26 | 20
TC/Z3G | 1GCZO30A | 1/2" | 16.5 | 10 | 30 | 33
TC/Z4G | 1GCZO40A | 3/4" | 21.5 | 12 | 40 | 73
TC/Z5G | 1GCZO50A | 1" | 21.5 | 14 | 45 | 93
TC/Z6G | 1GCZO60A | 1" 1/4 | 21.5 | 15 | 55 | 148
TC/Z7G | 1GCZO70A | 1" 1/2 | 21.5 | 15 | 55 |
TC/Z8G | 1GCZO80A | 2" | 21.5 | 17 | 70 | 284

Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | d | WEIGHT (g)
TC/Z0M | 1MCZO00A | 10 x 1 | 12 | 8 | 20 |
TC/Z1M | 1MCZO10A | 14 x 1.5 | 12 | 8 | 22 | 13
TC/Z2M | 1MCZO20A | 16 x 1.5 | 12 | 10 | 26 | 19
TC/Z3M | 1MCZO30A | 18 x 1.5 | 12 | 10 | 26 |
TC/Z4M | 1MCZO40A | 20 x 1.5 | 15 | 10 | 30 | 32
TC/Z5M | 1MCZO50A | 22 x 1.5 | 15 | 10 | 30 |
TC/Z6M | 1MCZO60A | 24 x 2 | 16.5 | 12 | 36 |
TC/Z7M | 1MCZO70A | 30 x 2 | 20 | 12 | 42 |
TC/Z8M | 1MCZO80A | 33 x 2 | 21.5 | 14 | 45 | 96

Characteristics / technical specifications

• Material: aluminium alloy (supplied without surface treatment)
• Head: knurled round head for hand-tightening
• Finish: anodizing available on request
• Thread standards: GAS ISO 228 and MB metric
• Available types (GAS ISO 228): TC/Z0G to TC/Z8G — see table for codes, thread sizes, dimensions and weights
• Available types (MB METRIC): TC/Z0M to TC/Z8M — see table for codes, thread sizes, dimensions and weights
