- Breather plug
- Mintor S.r.l.
Breather plug TCLS/Zfilling
Add to favorites
Compare this product
Characteristics
- Type
- breather
- Applications
- filling
Description
Product description

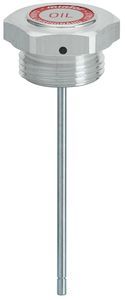

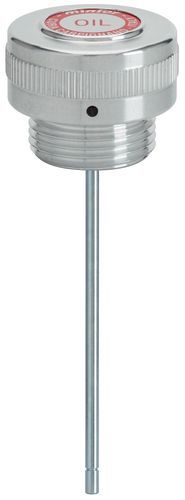

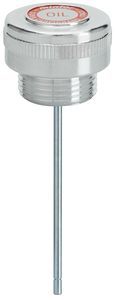

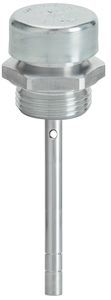

Filling plug with dipstick and breather.
Threaded plug in aluminium alloy, untreated, with knurled round head for hand-tightening. Hole for venting internal pressure with diameter from 2 mm to 3.5 mm (free vented). Built-in dipstick. Options on request: minimum and maximum notches or different lengths. For applications requiring extra-tight sealing, type LSF is recommended.
Available on request with anodizing treatment.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLS/Z1G | 1GLSZ10A | 1/4" | 12 | 8 | 120 | 5 | 22 |
TCLS/Z2G | 1GLSZ20A | 3/8" | 13.5 | 10 | 170 | 5 | 26 | 48
TCLS/Z3G | 1GLSZ30A | 1/2" | 16.5 | 10 | 170 | 5 | 30 | 59
TCLS/Z4G | 1GLSZ40A | 3/4" | 21.5 | 12 | 200 | 5 | 40 | 106
TCLS/Z5G | 1GLSZ50A | 1" | 21.5 | 14 | 200 | 5 | 45 | 129
TCLS/Z6G | 1GLSZ60A | 1" 1/4 | 21.5 | 15 | 250 | 5 | 55 | 188
TCLS/Z7G | 1GLSZ70A | 1" 1/2 | 21.5 | 15 | 250 | 5 | 55 | 204
TCLS/Z8G | 1GLSZ80A | 2" | 21.5 | 17 | 250 | 5 | 70 |
Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLS/Z1M | 1MLSZ10A | 14 x 1.5 | 12 | 8 | 120 | 5 | 22 |
TCLS/Z2M | 1MLSZ20A | 16 x 1.5 | 12 | 10 | 170 | 5 | 26 | 34
TCLS/Z3M | 1MLSZ30A | 18 x 1.5 | 12 | 10 | 170 | 5 | 26 |
TCLS/Z4M | 1MLSZ40A | 20 x 1.5 | 15 | 10 | 170 | 5 | 30 |
TCLS/Z5M | 1MLSZ50A | 22 x 1.5 | 15 | 10 | 170 | 5 | 30 |
Characteristics / technical specifications
Filling plug with dipstick and breather.
Threaded plug in aluminium alloy, untreated, with knurled round head for hand-tightening. Hole for venting internal pressure with diameter from 2 mm to 3.5 mm (free vented). Built-in dipstick. Options on request: minimum and maximum notches or different lengths. For applications requiring extra-tight sealing, type LSF is recommended.
Available on request with anodizing treatment.
Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLS/Z1G | 1GLSZ10A | 1/4" | 12 | 8 | 120 | 5 | 22 |
TCLS/Z2G | 1GLSZ20A | 3/8" | 13.5 | 10 | 170 | 5 | 26 | 48
TCLS/Z3G | 1GLSZ30A | 1/2" | 16.5 | 10 | 170 | 5 | 30 | 59
TCLS/Z4G | 1GLSZ40A | 3/4" | 21.5 | 12 | 200 | 5 | 40 | 106
TCLS/Z5G | 1GLSZ50A | 1" | 21.5 | 14 | 200 | 5 | 45 | 129
TCLS/Z6G | 1GLSZ60A | 1" 1/4 | 21.5 | 15 | 250 | 5 | 55 | 188
TCLS/Z7G | 1GLSZ70A | 1" 1/2 | 21.5 | 15 | 250 | 5 | 55 | 204
TCLS/Z8G | 1GLSZ80A | 2" | 21.5 | 17 | 250 | 5 | 70 |
Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLS/Z1M | 1MLSZ10A | 14 x 1.5 | 12 | 8 | 120 | 5 | 22 |
TCLS/Z2M | 1MLSZ20A | 16 x 1.5 | 12 | 10 | 170 | 5 | 26 | 34
TCLS/Z3M | 1MLSZ30A | 18 x 1.5 | 12 | 10 | 170 | 5 | 26 |
TCLS/Z4M | 1MLSZ40A | 20 x 1.5 | 15 | 10 | 170 | 5 | 30 |
TCLS/Z5M | 1MLSZ50A | 22 x 1.5 | 15 | 10 | 170 | 5 | 30 |
Characteristics / technical specifications
- Material: aluminium alloy
- Finish: untreated (anodizing available on request)
- Head: knurled round head for hand-tightening
- Vent: hole for venting internal pressure, diameter 2–3.5 mm (free vented)
- Integrated dipstick: built-in dipstick; options on request (minimum and maximum notches or different lengths)
- Recommended for extra-tight sealing: type LSF
- Available thread standards: GAS ISO 228 and MB metric (see technical tables above for codes and dimensions)
