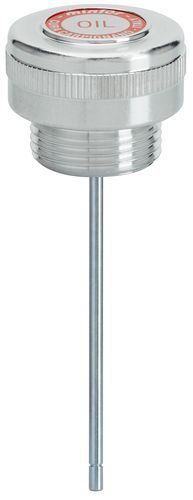

Engine oil level sensor TCLA/Z

with dipstick

Product
Threaded filling plug with integrated dipstick, manufactured in aluminium alloy and supplied untreated by default. Knurled round head for hand-tightening. Available on request with minimum and maximum notches or with different dipstick lengths.

Finish
Available on request with anodizing treatment.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLA/Z1G | 1GLAZ10A | 1/4" | 12 | 8 | 120 | 5 | 22 | 33
TCLA/Z2G | 1GLAZ20A | 3/8" | 13.5 | 10 | 170 | 5 | 26 | 47
TCLA/Z3G | 1GLAZ30A | 1/2" | 16.5 | 10 | 170 | 5 | 30 | 61
TCLA/Z4G | 1GLAZ40A | 3/4" | 21.5 | 12 | 200 | 5 | 40 |
TCLA/Z5G | 1GLAZ50A | 1" | 21.5 | 14 | 200 | 5 | 45 |
TCLA/Z6G | 1GLAZ60A | 1" 1/4 | 21.5 | 15 | 250 | 5 | 55 | 189
TCLA/Z7G | 1GLAZ70A | 1" 1/2 | 21.5 | 15 | 250 | 5 | 55 | 211
TCLA/Z8G | 1GLAZ80A | 2" | 21.5 | 17 | 250 | 5 | 70 | 304

Technical Info - MB METRIC
TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g)
TCLA/Z1M | 1MLAZ10A | 14 x 1.5 | 12 | 8 | 120 | 5 | 22 |
TCLA/Z2M | 1MLAZ20A | 16 x 1.5 | 12 | 10 | 170 | 5 | 26 |
TCLA/Z3M | 1MLAZ30A | 18 x 1.5 | 12 | 10 | 170 | 5 | 26 |
TCLA/Z4M | 1MLAZ40A | 20 x 1.5 | 15 | 10 | 170 | 5 | 30 |
TCLA/Z5M | 1MLAZ50A | 22 x 1.5 | 15 | 10 | 170 | 5 | 30 | 63

Technical characteristics / specifications

• Material: aluminium alloy (supplied untreated by default)
• Head: knurled round head for hand-tightening
• Type: threaded filling plug with integrated dipstick
• Thread standards available: GAS ISO 228 and MB metric (various sizes listed above)
• Available models: TCLA/Z1G ÷ TCLA/Z8G (GAS) and TCLA/Z1M ÷ TCLA/Z5M (METRIC)
• Dimensions and weights: see Technical Info tables above (columns: TYPE | CODE | THREAD | h | f | l | g | d | WEIGHT (g))
• Options on request: minimum and maximum notches, different dipstick lengths
• Optional finish: anodizing on request
