Breather plug TCLS

filling

Product description

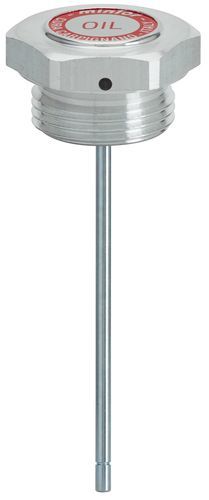

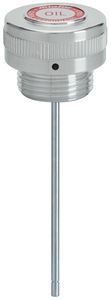

Threaded plug in aluminium alloy, without treatment, with hex head and breather hole for venting internal pressure (free-vented diameter from 2 mm to 3.5 mm). Built-in dipstick. Available on request with minimum and maximum notches or with different lengths. For applications requiring extra-tight sealing, type LSF is recommended. Available on request with anodizing treatment.

Technical Info - GAS ISO 228
TYPE | CODE | THREAD | t | f | l | g | e | WEIGHT (g)
TCLS1G | 1GCSL10A | 1/4\" | 6 | 8 | 120 | 5 | 17 | 25
TCLS2G | 1GCSL20A | 3/8\" | 9.5 | 10 | 170 | 5 | 22 | 38
TCLS3G | 1GCSL30A | 1/2\" | 10.5 | 10 | 170 | 5 | 27 | 40
TCLS4G | 1GCSL40A | 3/4\" | 10.5 | 12 | 200 | 5 | 32 | 60
TCLS5G | 1GCSL50A | 1\" | 10.5 | 14 | 200 | 5 | 40 | 88
TCLS6G | 1GCSL60A | 1\" 1/4 | 13.5 | 15 | 250 | 5 | 50 | 145
TCLS7G | 1GCSL70A | 1\" 1/2 | 12 | 15 | 250 | 5 | 55 |
TCLS8G | 1GCSL80A | 2\" | 12 | 17 | 250 | 5 | 70 |

Technical Info - MB METRIC
TYPE | CODE | THREAD | t | f | l | g | e | WEIGHT (g)
TCLS1M | 1MCSL10A | 14 x 1,5 | 6 | 8 | 120 | 5 | 17 |
TCLS2M | 1MCSL20A | 16 x 1,5 | 8 | 10 | 170 | 5 | 22 |
TCLS3M | 1MCSL30A | 18 x 1,5 | 8 | 10 | 170 | 5 | 22 |
TCLS4M | 1MCSL40A | 20 x 1,5 | 9 | 10 | 170 | 5 | 24 | 44
TCLS5M | 1MCSL50A | 22 x 1,5 | 10.5 | 10 | 170 | 5 | 27 | 47

Characteristics / technical specifications

• Material: aluminium alloy (without treatment)
• Head: hex head
• Breather hole: for venting internal pressure, free-vented diameter from 2 mm to 3.5 mm
• Built-in dipstick
• Available options on request: minimum and maximum notches, different lengths
• Recommended type for extra-tight sealing: LSF
• Surface treatment: anodizing available on request
• Standards/threads: GAS ISO 228 (G series) and MB metric versions provided with detailed TYPE / CODE / THREAD / dimensions and weights
