Digital control panel DSEG8015

with displaybacklitIP66

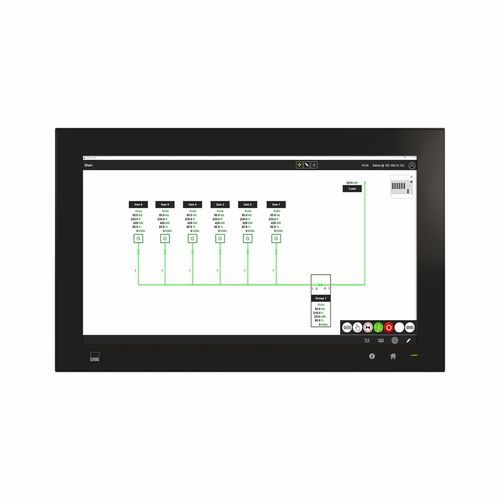

The G8015 is a Windows based panel PC running DSE SCADA software and is designed for use with the G8 Series paralleling controller platform. The unit provides a 1920 x 1080 LED backlit capacitive touchscreen display. When mounted, the units offer IP66 protection and the powerful Intel processor ensures smooth operation. The unit is connected to DSE G8 Series controllers via Ethernet. Product Highlights Key Benefits Powerful Intel® Atom® Processor.Delivers fast response times. 4 GB SDRAM.Provides fast response times to task requests. Multi-touch Capacitive Display.Simple user operation. 1 x Ethernet.Provides excellent system flexibility. 2 x USB 3.0.USB 3.0 delivers faster file transfer times. 1 x USB 2.0.Handles standard USB transfer speeds. IP66 Front Panel Protection.Provides excellent moisture ingress protection. Panel mount.Fixes neatly into a panel. Windows 10 IoT Enterprise.Powerful operating system. 2.5" SATA Solid State Drive.Reliable storage with no moving parts. Wi-Fi Hotspots.Allows other devices to connect to WI-FI. Lineout Audio System Connection.Delivers flexibility for the user. Specification DC Supply Continuous Voltage Rating 24 V DC ± 20% Memory 4 GB DDR3L SDRAM (Up to 8 GB) Storage Device 1 x M.2 (2242) / 1 x 2.5" SATA Solid State Drive LCD Panel FHD TFT LED / LCD Resolution 1920 x 1080 Luminance 450 cd/m2 Touchscreen Type PCAP Light Transmission 90% ± 3%
