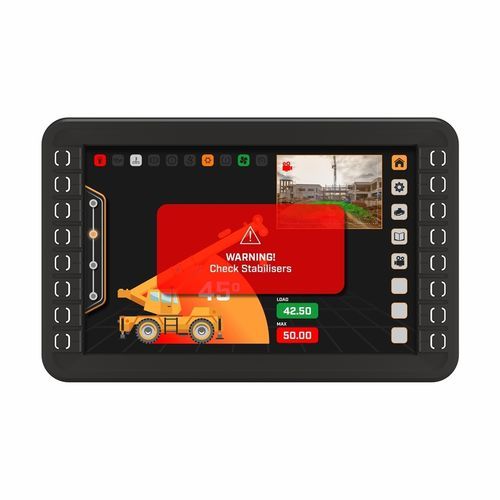

Display screen with touchscreen DSEM812

digital

The DSEM812 is a 12” Programmable Display designed for use on vehicles and off highway machinery and is the largest display in DSE’s programmable display range. Developed for use as a standalone product or with the DSEM64X programmable controllers, the DSEM812 provides users with outstanding flexibility. The DSEM812 is configured using CODESYS 3.5 or Qt, can be RAM or panel mounted and has the option to use in portrait or landscape orientation. OVERALL SIZE 330 mm x 210 mm x 63.5 mm / 12.99 ” x 8.26 ” x 2.5 ” WEIGHT 2.12 kg CUT-OUT 313 mm x 193 mm (R 12 mm) / 12.32 ” x 7.56 ” (R 0.5”) Key Features Robust HMI/programmable display specifically designed for mobile applications. Optically bonded 12.1 inch TFT, 1280 x 800, 16:10 resolution colour. Capacitive touch with glove support. Two hardware variants available one with keys configurable colour back light and touchscreen. One with touchscreen only (non keyed) iMx6 quad processor. 16 GB flash / 2 GB RAM. Wake-up providing fast boot functionality. USB host connections. 4 analogue (composite video) camera support (PAL/NTSC) 3 independent CAN interfaces. Each configurable as J1939, CANopen or RAW CAN. 2 independent Ethernet interfaces via M12 connectors (camera support - RTP RTSP H264 and MJPEG) 6 configurable outputs. 6 inputs (digital, resistive, voltage, 0-20 mA, 4-20 mA, frequency input). Wi-Fi support (external antenna required). GPS (external antenna required). Flexible user programming via CODESYS 3.5 or Qt. Built-in Web browser for communicating data over HTML to 3rd party devices
