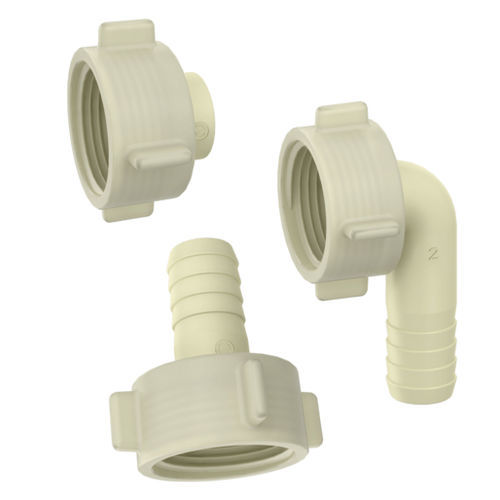

Plastic nozzle CF-H.

Threaded nozzles with the thread size G 3/4 and various nozzle connections for the flexible implementation of water paths. Installation is made easy by manually releasable swivel nuts. The outlet nozzles are available with different spouts, with and without a ribbing contour. The ribbing of the connecting pieces ensures a secure fit of the connected hose. However, an additional securing of the connection point by a hose clamp may be required. The threaded nozzless are compatible with the distribution systems CF-13 and CF-17. Applications .Direct connection to valves and tubes with sealed front side G 3/4 female thread (thread length 10mm) .Compatible with the distribution systems CF-13 and CF-17 .Screw-on fittings can be used in areas of plumbing, vending, agriculture and industry devices Characteristics .Available with different nozzle connections with and without ribbing .suitable for heated water up to 90 °C .Low weight .Easy installation due to manually releasable swivel nut .Long term performance capability Technical data Type:Connector fitting Construction:Straight connector (0°) Elbow connector (90°) Fitting position:any Media:Cold and heated potable water and physically and chemically similar media T-Medium:5 - 90 °C (194 °F max.) T-Ambient:5 - 70 °C Operating Pressure:0 - 10 bar Strength:according to EN 61770 Materials Seal:EPDM Swivel nut:PA 66 glass fibre reinforced Spout and step reducer:PA 6/6 glass fibre reinforced
