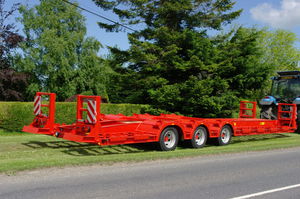

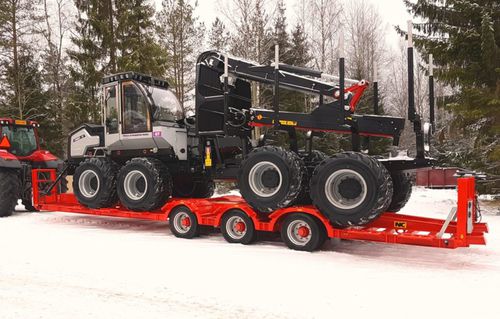

Flatbed trailer TRACTOR TOW

mounted3-axleforestry

• - Bed length 10m • - Bed width 2.6m (Note vvider than EC maximum width of 2.55m) • - Bed height 500mm • - Short ramps front and rear (rear spring assisted) • - 3 off 8-stud 100mm axles with 300x90 brakes including rear steering axle • - Hydraulic brakes using 30mm cylinders & external assisted springs • - 215/75x17.5 J rated wheels • - 2-leaf 100mm parabolic springs rated • - LED lights c/w marker boards & 2 off rear worklights • - Centre of châssis sheeted (Durbar to front followed by toolbox with timber over wheels) • - Outriggers • - Painted NC red, NC blue, NC green, NC yellow or black
