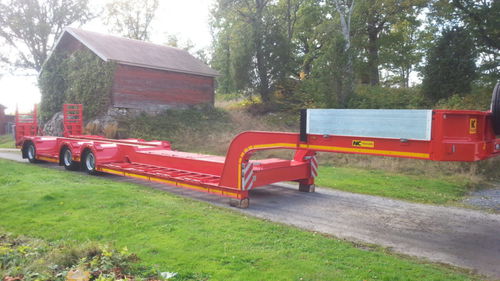

Flatbed trailer JUMBO

mounted3-axleagricultural

Bed length 10m (Note trailer exceeds EC maximum length by 800mm) Bed width 2.6m (Note widerthan EC maximum width of 2.55m) Bed height 500mm 3.7m neck with sloped access, headboard & 45 degree front corners 14 Tonnes, 2” kingpin at 1240mm height Rear spring assisted ramps 3 off 10-stud 127mm Granning axles with 310x190 brakes including rear steering axle Haldex EB+ braking 235/75x17.5 J rated wheels Air suspension c/w raise/lower valve LED lights c/w marker boards, 2 off rear workiights & 2 off neck worklights Centre of châssis sheeted (Durbar to front followed by toolbox with timber over wheels) Outriggers Painted NC red, NC blue, NC green, NC yellow or black Due to the length/Width of this trailer it does not fall under EU Whole vehide type approval and therefore v/ill require Individual Vehide Approval at flrst registration in EU destination country.
