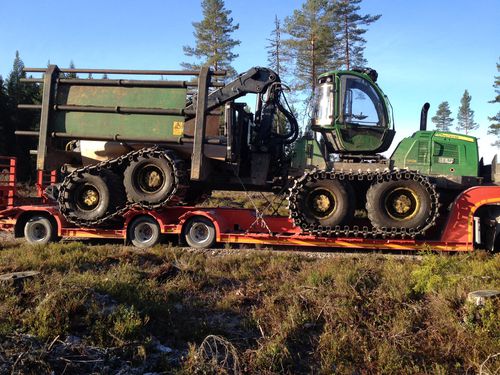

Flatbed trailer JUMBO

3-axleforestry40 ton

• - Bed length 10m (Note trailer exceeds EC maximum length by 800mm) • - Bed width 2.6m (Note wider than EC maximum width of 2.55m) • - Bed height 500mm • - 3.7m neck with sloped access, headboard & 45 degree front corners • - 18 Tonnes, 2” kingpin at 1240mm height • - Rear spring assisted ra mps • - 3 off 10-stud 127mm Granning axies with 310x190 brakes including rear steering axle • - Haldex EB+ braking . 235/75x17.5 J rated vvheels • - Air suspension c/w raise/lower valve • - LED lights c/w marker boards, 2 off rear worklights & 2 off neck workiights • - Centre of châssis sheeted (Durbar to front followed by toolbox with timber over wheels) • - Outriggers • - Painted NC red, NC blue, NC green, NC yellow or black • - Wider main châssis beams • - Due to the length/Wdth of this trailer it does not fall under EU Whole vehide type approval and therefore will require Individual Vehide Approval at first registration in EU destination country.
