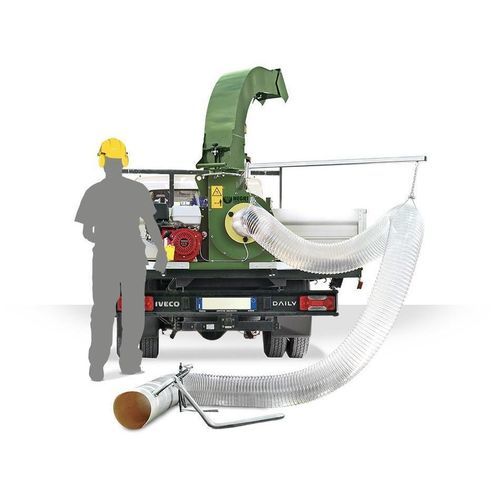

Towed leaf vacuum T13

Description
Leaf vacuum designed to collect leaves, cut grass and other light debris from ground surfaces.

Product family
Leaf vacuums

Key data

• Suction power: 150 m³/minute*
• Impeller diameter: Ø 390 mm
• Paddles: 4
• Suction hose diameter: Ø 200 mm

Versions

• Tailboard connection — Power: 13 hp / 9.6 kW — Engine: Honda GX390 — Model: TORNADOBHHP13
• Folding positioning support — Power: 13 hp / 9.6 kW — Engine: Honda GX390 — Model: TORNBH13SOL
• Road trailer — Power: 13 hp / 9.6 kW — Engine: Honda GX390 — Models: TORNBH13TRG, TORNBH13TRO

Basic equipment & main features

• IMPELLER | 4 paddles — Rapid material intake.
• Paddles in steel — Wear-resistant contact parts.
• Suction hose (rigid hose + flexible hose) — Combines wear resistance with light handling.
• Rotary support for flexible hose — Facilitates operator handling.
• Folding, rotary ejection pipe with adjustable discharge distance — Facilitates transport and allows ejection into a container, load bed or trailer.
• Replaceable inner cover — Main wear part; fully replaceable to protect the impeller housing.

Accessories

• Flexible suction hose extension

Notes
* Input material — Data depend on material type and working conditions.

Technical specifications

• Model: T13
• Suction power: 150 m³/minute*
• Impeller diameter: Ø 390 mm
• Paddles: 4
• Suction hose diameter: Ø 200 mm
• Engine power: 13 hp / 9.6 kW
• Engine example: Honda GX390
• Available variants/models: TORNADOBHHP13, TORNBH13SOL, TORNBH13TRG, TORNBH13TRO
