Towed leaf vacuum T20

Overview
Leaf vacuum system for suctioning leaves, cut grass and other light debris from the ground. Designed for rapid collection and transfer of material to containers, trailers or load beds for municipal and commercial grounds maintenance.

Model / Summary

• Model: T20
• Suction power: 170 m³/minute* (dependent on input material and operating conditions)
• Impeller diameter: Ø 390 mm
• Paddles: 8 (steel)
• Suction hose diameter: Ø 200 mm (rigid + flexible hose)

Versions

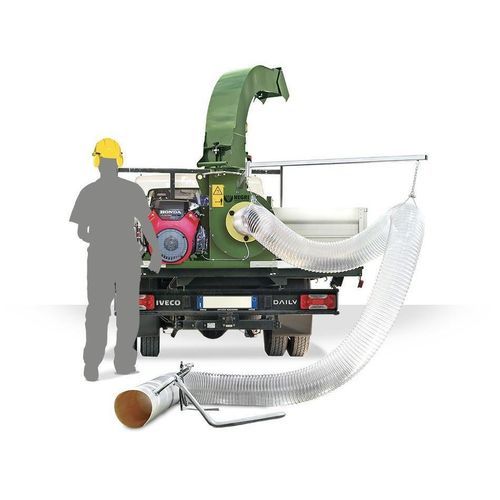

• Tailboard connection — Petrol power source. Engine: Honda GX630 — 21 hp / 15.5 kW. Version code: TORNADOBHHP21
• Folding positioning support — Petrol power source. Engine: Honda GX630 — 21 hp / 15.5 kW. Version code: TORNBH21SOL
• Road trailer — Petrol power source. Engine: Honda GX630 — 21 hp / 15.5 kW. Version codes: TORNBH21TRG, TORNBH21TRO

Basic equipment & features

• 8-paddle impeller — designed to intake material rapidly
• Steel paddles — high wear resistance
• Suction hose (rigid + flexible hose) — combines wear resistance with light weight for reliable handling
• Rotary support for flexible hose — facilitates operator handling
• Folding rotary ejection pipe with adjustable discharge distance — enables ejection into container, load bed or trailer and simplifies transport
• Replaceable inner cover — fully replaceable wear part to protect impeller housing
• Double bottom / reinforced housing — replaceable wear components

Accessories

• Flexible suction hose extension

Media
Product videos available demonstrating operation and configurations of the T20 leaf vacuum system.

Technical specifications

• Commercial designation: T20
• Suction power: 170 m³/minute* (dependent on input material and operating conditions)
• Impeller diameter: Ø 390 mm
• Paddles: 8 (steel)
• Suction hose diameter: Ø 200 mm (rigid + flexible hose)
• Standard engine option (petrol): Honda GX630 — 21 hp / 15.5 kW
• Available versions: Tailboard connection (TORNADOBHHP21), Positioning support (TORNBH21SOL), Road trailer (TORNBH21TRG, TORNBH21TRO)
• Basic equipment highlights: 8-paddle impeller, steel paddles, rigid + flexible suction hose, rotary support, folding rotary ejection pipe with adjustable discharge distance, replaceable inner cover
• Accessories: Flexible suction hose extension
