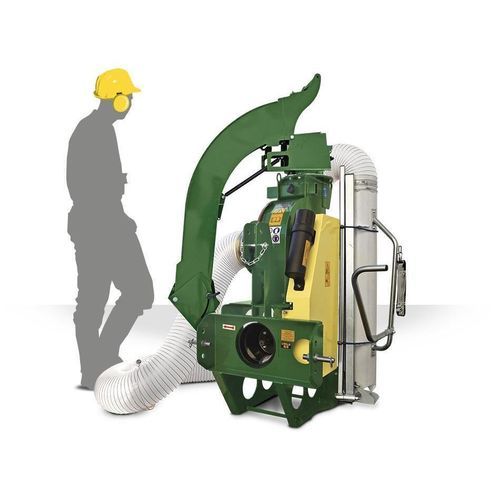

Tractor-mounted leaf vacuum PTO

Overview
Leaf vacuums designed to collect leaves, cut grass and other light debris from lawns, parks and agricultural areas.

Version

• Tractor version (three-point linkage / longitudinal machine)
• Model: TORNADOPTO

Main features

• Suction power: 170 m³/min*
• Impeller diameter: Ø 390 mm
• Impeller: 8 paddles
• Suction hose diameter: Ø 200 mm (rigid hose + flexible hose)
• Power requirement (tractor): hp/kW ≥ 25 / 18.4

Basic equipment

• Impeller | 8 paddles — Rapid intake of material
• Steel paddles — Increased wear resistance
• Suction hose (rigid + flexible) — Combines durability and lightness for ease of handling
• Rotary support for flexible hose — Simplifies operator handling
• Folding rotary discharge pipe with adjustable ejection distance — Enables ejection into container, load bed or trailer
• Replaceable inner cover — Fully replaceable to protect the impeller housing

Accessories

• Flexible suction hose extension
• CE-marked PTO shaft with freewheel

Notes

• * Input material — data depend on material type and working conditions.

Technical specifications

• Suction power: 170 m³/min*
• Impeller diameter: Ø 390 mm
• Paddles: 8
• Suction hose diameter: Ø 200 mm
• Power (tractor): hp/kW ≥ 25 / 18.4
• Version: Tractor (three-point linkage / longitudinal machine)
• Model: TORNADOPTO
