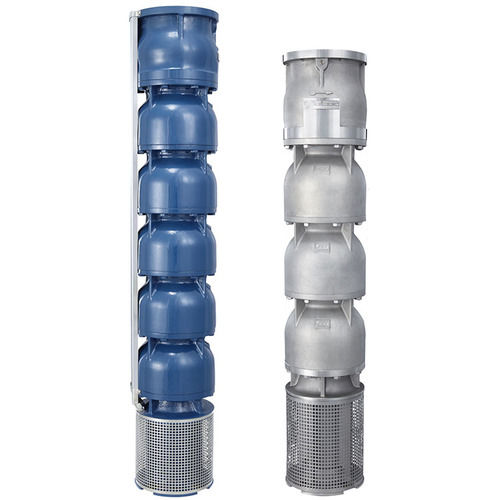

Water pump SG8
submersiblevertical

water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Application
water
Priming
submersible
Other characteristics
vertical
Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 210 m³/h
(7,416.08001 ft³/h)

Power

Min.: 5.5 kW
(7.5 hp)

Max.: 90 kW
(122.4 hp)

Description

The maximum flow of the SG8 series submersible 8-inch pump is 210m³/h, and the maximum lift is 503m.The power range of SG8 series submersible 8 inch pump is 5,5kw-90kw, 380V/50Hz.The solid content (weight) of the pumped liquid of the SG8 series submersible 8-inch pump is required to be ≤0,1%.The temperature requirement of the SG8 series submersible 8-inch pump is 0~35°C, and the PH requirement of the pumped liquid is 6,5~8,5.When the SG8 series submersible 8-inch pump is working, it is required that the chloride ion in the water should not exceed 400mg/L, and the hydrogen sulfide in the water should not exceed 1.5mg/L.The flow velocity around the motor of the SG8 series submersible 8-inch pump should not be less than 0.16m/s. MOTOR Three-phase: 5,5kw-90kw, 380V/50Hz Maximum allowable voltage fluctuations over the rated voltage: 380V±7% Maximum number of starts per hour at regular intervals: 10
