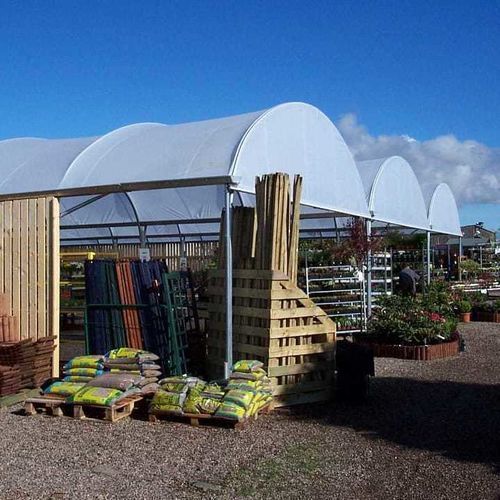

Tunnel type greenhouse

with steel frameworkaluminum frame

Overview
Multi‑span canopy structures designed for outdoor storage and covered work areas. Commonly specified by garden centres, builders' yards and retail nurseries, the frames combine aluminium components with MAGNAtube® steel for long service life. Wide gutters are fitted to support posts on both sides of the structure as standard.

Key features

• Wide gutters on both sides as standard
• Quick and straightforward installation to minimise site disruption
• Typically clad with white polythene; alternative cover finishes available
• Suitable for covered work areas, loading bays and dry storage
• Steel components: Z35 heavy gauge, hot dip galvanised to BS EN ISO1461:2009
• Aluminium lintels and MAGNAtube® steel framing
• Custom lengths available

Available sizes & construction

• Lengths: manufactured in any length in 8 ft (approx. 2.44 m) increments
• Standard widths: 6.4 m, 8.0 m and 9.1 m
• Construction: aluminium components combined with MAGNAtube® steel for durability
• Polythene fixing: Ali‑trap fixing system secures the main cover to end hoops; separate polythene used for end 'D' panels for a neat, flat finish

Applications

• Outdoor storage for garden centres, builders' yards and retail nurseries
• Covered work areas and assembly zones
• Loading bays and logistics shelters
• Dry storage and protected bulk storage

Design, manufacture & services

• Consultation to tailor structure and internal systems to project requirements
• Bespoke design: 2D/3D modelling, structural analysis and project engineering support
• Manufacture: 2000 m² UK facility with capacity to process ~1,200 tonnes of steel structures per year
• Delivery: large dispatch capability (10,000 m² dispatch area) and dedicated transport fleet
• Construction: experienced on‑site project management and specialist equipment for efficient assembly
• Aftercare: maintenance and support services available post‑installation

Technical specifications

• Lengths: any length in 8 ft increments
• Widths: 6.4 m, 8.0 m, 9.1 m
• Framework materials: aluminium and MAGNAtube® steel
• Steel finish: Z35 heavy gauge, hot dip galvanised to BS EN ISO1461:2009
• Polythene fixing: Ali‑trap fixing system; separate polythene for end 'D' panels
• Gutters: wide gutters fitted to support posts both sides as standard
• Typical cover: white polythene (other options available)
• Typical uses: outdoor storage, covered work areas, loading bays, dry storage
• Manufacturing capacity: 2000 m² facility; approx. 1,200 tonnes steel structures per year
• Dispatch capability: 10,000 m² dispatch area and delivery fleet
