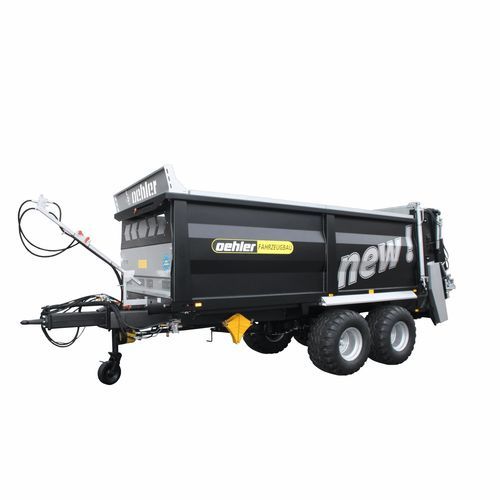

Towed manure spreader OL STT 130 M

horizontals beaterstinetandem

OL STT 130 M - Tandem axle manure spreader Permissible total weight: 13.0 t Box dimensions (internal): 4,700 x 1,900 x 1,200 mm Empty weight approx.: 3,500 kg Total length: 7,315 mm Overall width: 2,350 mm Track width approx.: 1,700 mm Max. axle load capacity: 12,400 kg Brakes: 2-circuit compressed air brake system Axles: BPW, suitable for 25 km/h Interior dimensions of the box: 4,700 x 1,900 x 1,200 mm Body height: 1,200 mm Rollers: running separately in oil bath gearbox Spreader: 4 vertical special spreader rollers with tines, passage approx. 1,940 x 1,200 mm Spreader height approx.: 1,360 mm - Wide spreader for precise distribution even at low application rates - Sliding gate with dosing indicator - 11 cubic meters loading volume - Robust profile tube frame - Tandem suspension for particularly high driving comfort - Particularly suitable for: dry poultry manure, compost, and similar substrates (due to good crushing effect) - Universal wide spreader consists of 2 horizontally mounted milling rollers and 2 spreading discs - Ejection wings are made of HARDOX and therefore very wear-resistant - BPW axles for highest quality; suitable for 25 km/h - Reinforced, bolted scraper floor slats - 4 scraper floor chains (hardened) 10×35 mm, 12t tensile strength, guided in U-profiles, very wear-resistant - Haldex 4-wheel air brake - TÜV 25 km/h – 40 km/h option - Forward and reverse with quick unloading device - 2K paint finish (body structure)
