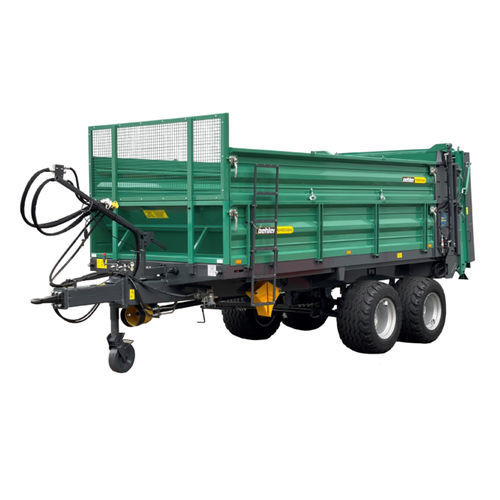

OL STT 130 - Tandem axle manure spreader
Permissible total weight: 13.0 t
Box dimensions (internal): 4700x1900x600 mm
Standard tires: 12.5/80-18/142 A8
Unladen weight approx.: 3,350 kg
Standard side wall: 600 mm
Max. axle load capacity: 12,400 kg
Side walls: Steel, foldable to the side
Brakes: 2-circuit compressed air system
Axles: BPW: suitable for 25 km/h
Rollers: Separate, running in oil bath gearbox
Chains: 4 sturdy scraper floor chains
Scraper floor: Screen printing plates, low wear / hydraulically infinitely adjustable, forward and reverse, continuously bolted scraper floor slats
Spreading mechanism: 4 vertical special spreading rollers with tines, passage approx. 1,200 mm, hydraulically foldable spreading mechanism guard
- DLG-tested spreading accuracy (fine spreading mechanism with 4 vertical rollers)
- Spreading mechanism: removable, electronically balanced, bolted, rotatable spreader tines
- Galvanized, robust scraper floor chains
- Reinforced, bolted scraper floor bars
- Danfoss hydraulics with infinitely variable speed control forward + reverse
- Low-wear floor (screen printing plates)
