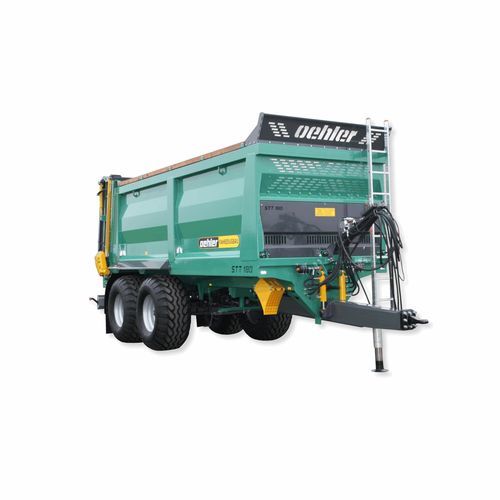

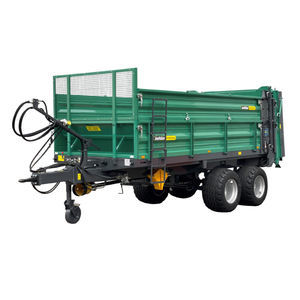

OL STT 180 - Tandem axle manure spreader
Permissible total weight: 18.0 t
Unladen weight approx.: 6,500 kg
Inner box dimensions: 5,190 x 1,940 x 1,400 mm
Basic tires: 560/60-22.5 TL 167 A8 Flotation+
Basic side wall: 1,300 mm each + 100 mm wood protection
Maximum axle load capacity: 18,000 kg
Side walls: steel, fixed
Brakes: dual-circuit compressed air system
Axles: BPW: suitable for 25/40/60 km/h
Inner box dimensions: 5190 x 1940 x 1400 mm
Rollers: separate running in oil bath gearbox
Chains: 4 robust scraper floor chains
Scraper floor: Wear-resistant steel floor / hydraulically infinitely adjustable, forwards and backwards, continuously welded scraper floor slats
Spreading mechanism: 2 horizontal special spreading rollers with tines - wide spreader - , passage approx. 1,940 x 1,400 mm, hydraulically foldable spreader guard
Slider: Standard
ALB: Standard
Control: 4-way control incl. control panel
- Large loading volume of 13.5/14 cubic meters
- Withstands the toughest loads
- Optimal loading height is approx. 2.97 m, so that the universal spreader can be easily loaded with a wheel loader or tractor with front loader
- Driven scraper floor slats are infinitely adjustable
- Ideal for transporting and spreading compost and manure of various origins
