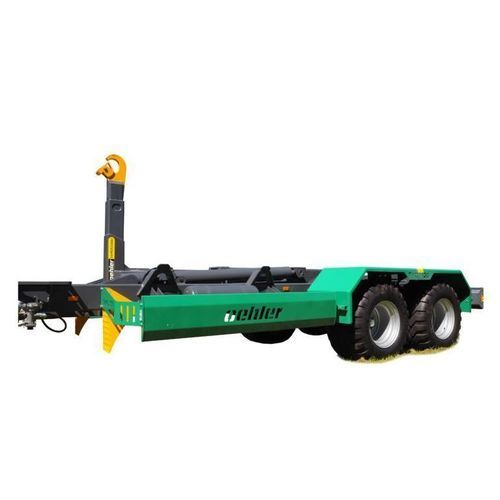

Hook lift trailer OL THKL 130

2-axleagriculturalwith pneumatic braking

OL THKL 130 - Tandem axle hook lift Permissible total weight: 13.0 t Unladen weight approx.: 2,750 kg Basic tires: 400/60-15.5 TL 145 A8 Flotation+ Maximum axle load capacity: 12,400 kg (11,000 kg) Maximum operating pressure: 200 bar Required oil quantity: 40 l Brakes: Dual-circuit compressed air brake system, 4-wheel braking Electrical system: 12-volt lighting system, rear power outlet Other: Wheel chocks Support load approx.: 2,000 kg Maximum lifting capacity: 8,000 kg - Torsion-resistant chassis made of closed C-frame - Dual-circuit compressed air brake system, 4-wheel braking - BPW axle suitable for 25/40 km/h, leaf springs - ALB as standard - 12-volt lighting system, rear socket - Hook lift unit with tilt cylinder, diameter 125 mm, suitable for containers according to DIN 30722, roller height 970 mm - Hydraulic system with hydraulic lock, hook height 900 mm - 2K paint finish - Container length 3,400 – 5,200 mm, optimum 4,700 mm - Mudguards
