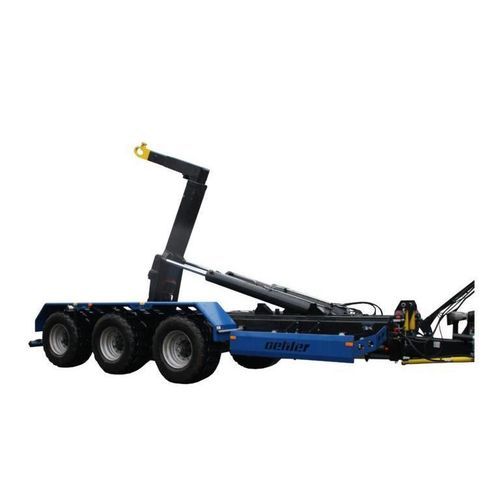

Hook lift trailer OL THKL 300

3-axleagricultural30 ton

Standard equipment - Torsion-resistant chassis made of closed C-frame, hydraulically sprung drawbar - Dual-circuit compressed air brake system, 4-wheel braking - ADR axle 406×120 mm suitable for 25/40 km/h, composite unit with parabolic suspension - ALB as standard - 2nd compressed air connection moved to the rear - 12-volt lighting system, rear socket - 1st and 3rd steering axles with forced steering - HYVA lift hook lift unit, base frame made of DOMEX 420 MX, cylinder mounting via mounting frame, tipping frame with separate tipping and roller bearings, automatic mechanical rotating shaft bearing of the tipping frame, container support with 4 rollers and 4 supports, safety lock, sliding hook arm made of DOMEX 420 MX (maintenance-free) - Hydraulic system with double-acting cylinders, hydraulic internal locking, hook height 1,500 mm, mechanical fall protection, main cylinder 160/80, rollers 152 mm, hydraulic lines routed to the front - 2K paint finish - Container length 5,100 – 7,500 mm - Mudguards NEW Special equipment with Z-crane – OL 8900 Z! Permissible total weight: 30 t Unladen weight approx.: 6,500 kg Support load approx.: 3,000/4,000 kg Basic tires: 385/65 R 22.5 retreaded Max. axle load capacity: 27,000/30,000 kg Max. operating pressure: 200 bar Required oil quantity: 90 - 100 l Brakes: Dual-circuit compressed air brake system, 4-wheel braking Electrical system: 12-volt lighting system, rear power outlet Other: Wheel chocks Max. lifting capacity: 26 t
