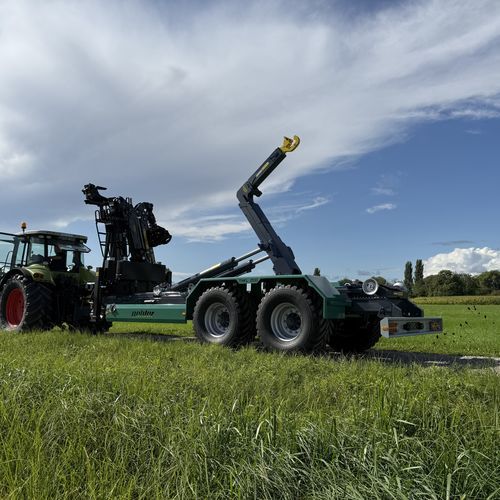

Hook lift trailer OL THKL 200

2-axleagricultural20 t...40 t

OL THKL 200 - Tandem axle hook lift Permissible total weight: 20.0 - 22.0 t Unladen weight approx. 4,800 kg Support load approx. 2,000/3,000/4,000 kg Standard tires: 385/65 R 22.5 retreaded Unladen weight approx.: 4,800 kg Track width approx.: 1,950 mm Max. axle load capacity: 23,000 kg Max. operating pressure: 200 bar Required oil quantity: 80-85 l Brakes: 2-circuit compressed air braking system, 4-wheel braking Electrical system: 12-volt lighting system, rear socket Other: Wheel chocks Max. lifting capacity: 18 t - Torsion-resistant chassis made of closed C-frame, hydraulic suspension drawbar - Dual-circuit compressed air brake system, 4-wheel braking - BPW rigid axle 410 x 120 mm suitable for 25/40/60 km/h - ALB as standard - 2nd compressed air connection moved to the rear - HYVA-Lift hook lift unit, base frame made of DOMEX 420 MX, cylinder mounting via mounting frame, tipping frame with separate tipping and roll-off bearings, automatic mechanical rotary shaft bearing of the tipping frame, container bearing with 4 rollers and 4 supports, safety lock, sliding hook arm made of DOMEX 420 MX (maintenance-free) - Hydraulic system double-acting cylinders, hydraulic internal lock, hook height 1,570 mm, mechanical fall protection, main cylinder 160/80, discharge rollers 152 mm, hydraulic lines routed to the front - 2K paint finish - Container length 4,200–6,500 mm, optimum 6,000 mm - Mudguards
