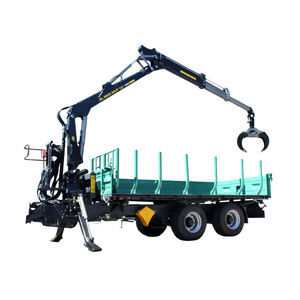

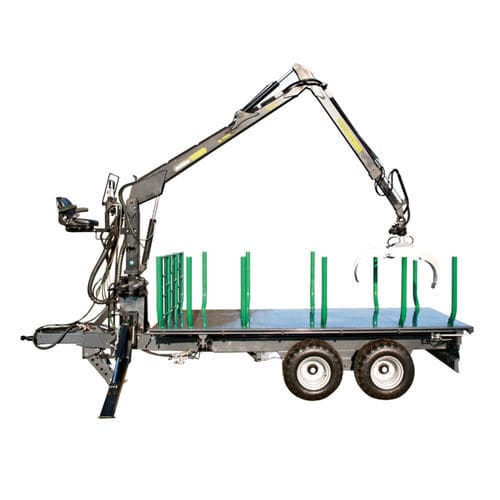

Flatbed trailer OL TDK 120 K

2-axleforestry12 ton

OL TDK 120 K - Tandem axle combination tipper Permissible total weight: 12.0 t Unladen weight approx. without crane: 2,560 kg Inner flatbed dimensions: 4,500 x 2,240(2,180) x 600 mm Imagine starting your work in the morning with everything you need: a tipper with 3-way tipping function for flexible unloading, a crane for loading goods, and a timber trailer. OEHLER combines the advantages of three machines in just one vehicle. This reduces your costs, saves time, and gives you maximum flexibility – whether in agriculture, forestry, construction, or transportation. Standard tires: 12.5/80-18/142 A8 Approx. curb weight: without crane: 2,560 kg Standard side wall: 600 mm Platform height approx.: 1,180 mm Floor plate: 5 mm continuous, unwelded Max. axle load capacity: 12,400 kg Tilt cylinder stages: 4 Cylinder stroke length: 1,700 mm mm Cylinder stages Ø mm: 75-90-105-120 Max. operating pressure: 200 bar Required oil quantity: 14.6 l Brake: 2-circuit compressed air brake system Electrical system: 12 volt lighting system, rear socket - Torsion-resistant chassis made of sturdy C-frame, closed, extended, platform reinforcement with 10 stanchions - Steel side walls separately pendulum-mounted with rubbing strip, grain slide, tension ropes - Conical bridge, central locking on 3 sides, bolted corner stanchions - BPW axle: suitable for 25/40 km/h - Foldable support wheel - ACC dip primer and powder coating - Tilting device 4-stage lift cylinder, 1,700 mm lift, hard chrome-plated piston rod, gimbal mounting, automatic lift limitation - TÜV approval up to 40 km/h at maximum payload - Various crane superstructures (also as Z-crane) available - Robust, low design with high maneuverability - From 100% 3-way tipper – with short conversion time – to fully-fledged timber trailer - Optionally available as export vehicle, also with hydraulic oil brake
