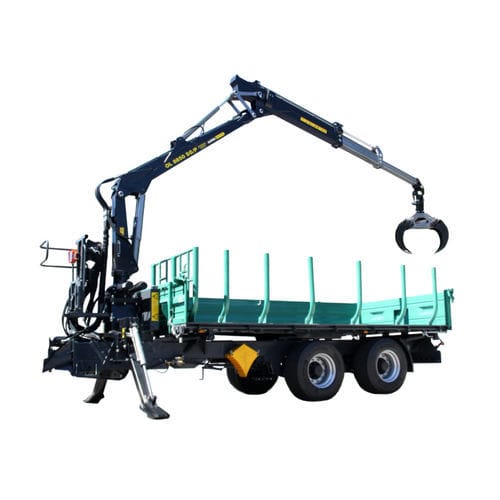

Flatbed trailer OL TDK 160 K

2-axleforestry16 ton

OL TDK 160 K - Tandem axle combination tipper Permissible total weight: 16.0 t Platform dimensions (internal): 5,000 × 2,300(2,360) × 600 mm Imagine starting work in the morning with everything you need: a tipper with a 3-sided tipping function for flexible unloading, a crane for loading goods, and a timber trailer. With the OL TDK 160 K tandem combination tipper, this is exactly what you get. OEHLER combines the advantages of three machines in a single vehicle. This reduces your costs, saves time, and gives you maximum flexibility – whether in agriculture, forestry, construction, or transportation. Standard tires: 385/65 R 22.5 retreaded Approx. weight: without crane: 3,300 kg Base side wall: 600 mm Approx. platform height: 1,320 mm Base plate: 5 mm continuous, unwelded Max. axle load capacity: 18,000 kg Tilt cylinder stages: 5 Cylinder stroke length: 1,850 mm Cylinder stages Ø mm: 75-90-105-120-140 Max. operating pressure: 200 bar Required oil quantity: 18.6 l Brake: 2-circuit compressed air brake system Electrical system: 12 volt lighting system, rear socket Other: Wheel chocks - Torsion-resistant chassis made of sturdy C-frame, closed, extended, platform reinforcement with 12 stanchions - Steel side walls separately pendulum-mounted with rubbing strip, grain slide, tension ropes - Conical bridge, central locking on 3 sides, bolted corner stanchions - BPW axle: suitable for 25/40 km/h - Hydraulic support leg (scissor support leg) - ACC dip primer and powder coating - Tilting device 5-stage lift cylinder, 1,850 mm stroke, hard chrome-plated piston rod, gimbal mounting, automatic stroke limitation - Various crane superstructures (also as Z-crane) available - Robust, low design with high maneuverability - Optionally available as an export vehicle, also with hydraulic oil brake
