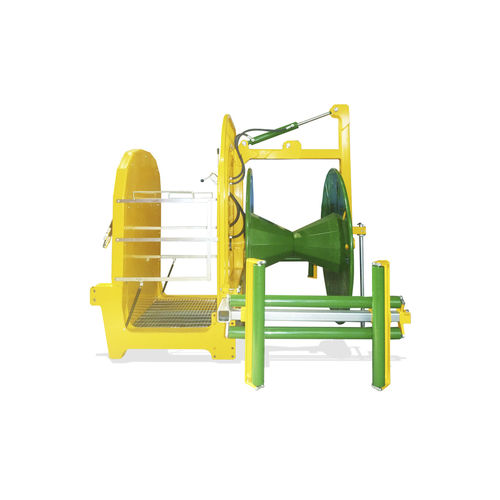

Hydraulic drive irrigation hose reel RM

tractor-mounted

Drip irrigation hose collector Machine for collecting and winding the irrigation hose from the field. Fixed with the third point to the tractor, work raised from the ground. Technical features Machine structure The machine is composed of: 1) Main frame 2) Third point 3) Operator platform 4) Operator protections 5) Command console 6) Hydraulic connections to the tractor 7) Roll winding roller 8) Rollers to convey horizontal hose 9) Rollers to convey vertical hose 10) Machine stop pin 11) Coil unloading mechanism Machine operation Thanks to the horizontal and vertical hoses conveyor rollers (12), we bring to the roll reel roller (13), several hoses simultaneously, creating a single collection reel. The coil reel roller (14) is driven by a hydraulic motor powered directly by the tractor’s hydraulic system. It is possible to adjust the rotation speed thanks to a lever flow regulator (15) placed in the operator’s control panel.
