Automatic plastic mulch layer

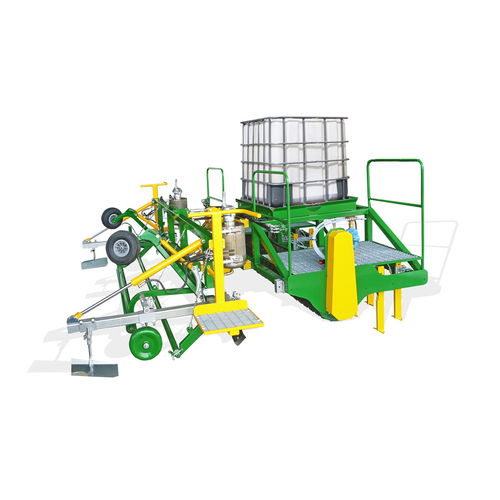

The Gluing and layer machine for barrier film is a trailed machine that, thanks to its applications, performs – the laying of barrier film – the film for solarization – mulching Mulching Film Layer It guarantees excellent results in sealing the soil, thanks to a precise laying of the nylon film. Oliver Agro company’s Mulching Film Layer is a mulching machine, used to uniformly spread the protective film, in particular TIF or VIF, sealing it with a special glue to avoid dispersion of fumigating product in the atmosphere. Thanks to the Oliver Agro Mulching Film Layer, it will be possible to obtain an hermetic seal and the consequent solarization, which also acts as a herbicide. Technical features Frame Including a third point (1), spare coil holder (2) and side plates (3) for operator. The frame is variable in width (4): from 2 to 6 meters and any dimensions on request. Laying machine working frame If you need to mulch single strips of soil, the nylon spread and seal system is simple and effective. On each side of the nylon edge, a tilting arm (5), supports the elements for fixing the film and, thanks to a hydraulic system, we can lift it in case of non-use. Before laying, a plow (6) creates a groove where the nylon film (7), pressed and in position, is placed by a smooth wheel (8). A tail vomer (9) covers it with soil and fixes it effectively to the ground. To cover and seal a certain strip of soil on both sides, the tilting arms (10) are both in working position.
