Stone burier with hydraulic adjustment Brava 2003

stone burier with hydraulic adjustment
stone burier with hydraulic adjustment
stone burier with hydraulic adjustment
stone burier with hydraulic adjustment
stone burier with hydraulic adjustment
stone burier with hydraulic adjustment
Add to favorites
Compare this product


Characteristics

Other characteristic
with hydraulic adjustment

Description

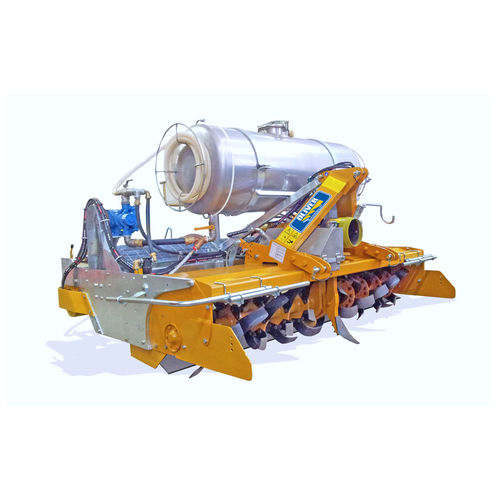

BRAVA 2003 is a soil fumigation machine for fumigants liquids. Designed to have a better and more uniform distribution of the fumigant along the entire profile of the ground, obtaining a decidedly superior processing. Technical features The machine consists of a galvanized structure (1), and is equipped with: –Milling machine (2), with the purpose of locating and mixing the product in the ground, followed by a compact ground cage roller (3), and finally by a motorized smoothing roller (4) which better seals and compacts the soil. Completing the outfitting is the stainless steel product tank (5), the CDS-John Blue variable displacement pump LM 2455 (6), a series of anti-drop (7), the stainless steel transfer pump (8), box manual door (9) (inside we find the instruction manual) and handwash tank (10). Functioning of the machinery Mixer rotor (A) The mixing phase of the product in the ground takes place with an innovative milling machine (A). In fact, it is equipped with a rotor that is moved thanks to a central bevel gear (A1), at variable speed thanks to a 4-speed gearbox, giving the motion also to the side rotors (the latters supplied with N° 6 knives (A2) for each flange) that can thus reach a depth of 15-22 cm. They also make it possible to keep both the tractor rpm and the engaged power low, ensuring better mixing. he tractor rpm and the engaged power low, ensuring better mixing.
