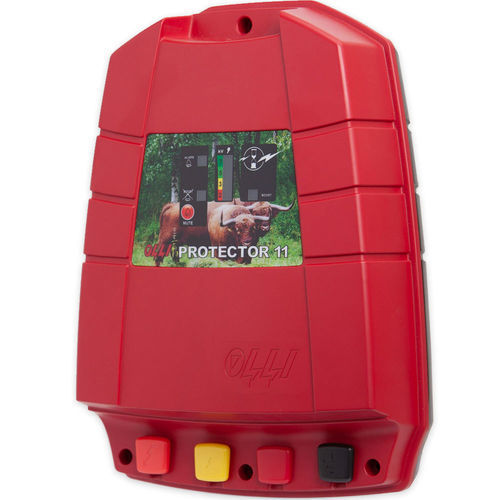

Battery-powered fence energizer Protector 11

for horses

Overview
Olli Protector 11 provides powerful, adjustable output for long and heavily loaded electric fences. With 11 J maximum output energy and a separate 0.5 J output for small enclosures, it continuously monitors fence condition and adapts power based on fence length and vegetation contact.

Key features

• Output energy: 11 J (high-energy output for long fences)
• Separate 0.5 J output (yellow) for small paddocks or courtyard fences
• Intelligent continuous fence condition monitoring with automatic power adjustment
• Real-time illustrative display showing fence condition and voltage
• BOOST indicator lamp when output energy exceeds 5 J
• Alarm function signalling sudden disturbances; alarm can be silenced by push button, after which output is limited to a maximum of 5 J
• Built-in lightning protection

Safe efficiency
Protector meets EN 60335-2-76/A12:2010. It can deliver up to 11 J into a long fence burdened by vegetation while ensuring that contact by an animal or person does not result in a shock exceeding 5 J. When fence load increases (e.g., vegetation growth), the energiser increases power only after a 60-second delay. In case of sudden heavy disturbance (tree, animal or person falling onto the fence), the energiser reduces shock intensity, slows pulse frequency and activates a 10-minute alarm to aid detachment.

Use cases
Suitable for very long fences and for keeping horses, livestock and wild animals under control. The separate 0.5 J output is intended for small paddocks or courtyard fences.

Tip
Insufficient earthing is the most common cause of poor fence performance. Correct, adequate earthing installation from the start reduces many performance issues.

Service and warranty
All Olli energisers include a 3-year warranty covering lightning damage. Olli energisers manufactured in Finland are serviced by the factory service outlet and authorised Olli Service Partners. Spare parts are guaranteed to be available for many years, including discontinued models.

Technical specifications

• Maximum voltage: 11,700 V
• Voltage at 500 Ω load: 7,700 V
• Stored energy: 14 J
• Maximum output energy: 11 J
• Power consumption: 14 W
• Recommended number of earthing rods: 2-5 pcs.
• Maximum theoretical fence length (total): 475 km
• Maximum theoretical fence length (light vegetation): 65 km
• Maximum theoretical fence length (moderate vegetation): 20 km
• Built-in lightning protection: Yes
• Warranty (including lightning damage): 3 years
• Olli product code: 6010011
• EAN code: 6417160100435
