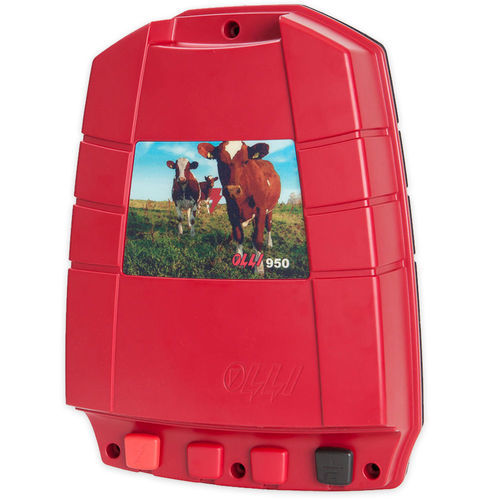

Battery-powered fence energizer 950

for horses

Overview
Olli 950 is a mains-powered electric fence energiser designed for straightforward installation and reliable containment of horses and livestock. It delivers a snappy maximum output energy of 4.8 J suited to long fences and mixed vegetation conditions.

Functionality
The unit includes an InfoLED that signals when fence voltage falls below 2,500 V, prompting inspection of the fence line. Peak impulse (no-load) reaches 10,000 V and the unit provides 5,000 V into a 500 Ω load. Power consumption is low at 11 W.

Tips
For enhanced fence monitoring consider the Olli 1000. For higher shock intensity, the Olli Protector 11 offers stronger impulses. The most common cause of poor fence performance is inadequate earthing; install correct and sufficient earthing rods from the start to ensure effective operation.

Service & Warranty
All Olli energisers include a 3-year warranty covering lightning damage. Units manufactured in Finland are serviced by the factory service outlet and authorised Olli Service Partners. Spare parts availability is guaranteed for many years, including discontinued models.

Product information
Maximum voltage: 10,000 V
Voltage at 500 Ohm load: 5,000 V
Stored energy: 8.9 J
Maximum output energy: 4.8 J
Power consumption: 11 W
Indicative number of earthing rods: 2-5 pcs.
Maximum theoretical fence length: 310 km
Maximum theoretical fence length (light vegetation): 30 km
Maximum theoretical fence length (moderate vegetation): 12 km
Built-in lightning protection: Yes
Warranty, incl. lightning damage: 3 years
Olli product code: 6009500
EAN code: 6417160100411

Technical specifications

• Peak impulse voltage (no-load): 10,000 V
• Voltage at 500 Ω load: 5,000 V
• Stored energy (max): 8.9 J
• Maximum output energy (shock intensity): 4.8 J
• Power consumption (max): 11 W
• Recommended earthing rods: 2–5 pcs.
• Maximum theoretical fence lengths: 310 km (theoretical), 30 km (light vegetation), 12 km (moderate vegetation)
• Built-in lightning protection: Yes
• Warranty: 3 years (includes lightning damage)
• Product code: 6009500
• EAN: 6417160100411
