Battery-powered fence energizer 1000

for horses

Overview

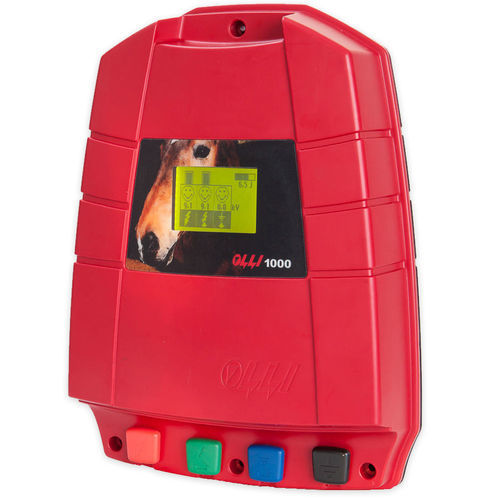

Olli 1000 is a mains-powered electric fence energiser delivering up to 4.5 J output energy. The unit continuously monitors earth connection and fence voltage, and automatically adapts output power to fence load to maintain effective output over a wider load range than conventional energisers.

Applications

• Fencing horses and all farm animals
• Deterring wild animals from farmland

Display and measurement functions
The backlit graphic display uses Olli emoticons to indicate fence condition at a glance, even in low light. Measurement features include return-voltage measurement to identify fence faults and voltage drop, and earth-function measurement when an additional earthing rod is connected.

Notes & tips
Insufficient earthing is the most common cause of poor fence performance. Correct and adequate installation of earth rods at the outset prevents many issues related to low fence effectiveness.

Service and warranty
Olli energisers are covered by a 3-year warranty, including lightning damage. Manufactured in Finland, units are serviced by the factory service point and authorised Olli Service Partners. Spare parts are guaranteed available for many years, including for discontinued models.

Technical specifications

• Maximum voltage: 9,500 V
• Voltage at 500 Ohm load: 5,100 V
• Stored energy: 9.3 J
• Maximum output energy: 4.5 J
• Power consumption: 13 W
• Indicative number of earthing rods: 2-5 pcs.
• Maximum theoretical fence length (single-wire, thick metal): 310 km
• Maximum theoretical fence length (light vegetation): 30 km
• Maximum theoretical fence length (moderate vegetation): 12 km
• Built-in lightning protection: Yes
• Warranty (incl. lightning damage): 3 years
• Olli product code: 6010000
• EAN code: 6417160120037
