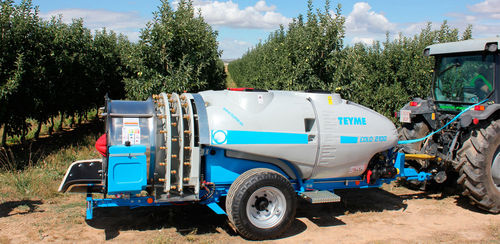

Towed agricultural atomizer MISTBLOWERS

mountedtractor-mounted3-point hitch

Overview
TEYME mistblowers are built with robust construction and modular options to suit different crop frames and application needs. Configurations include liftmounted, trailed and narrow trailed units for orchards, vineyards and large plots.

Air units
The air units deliver selectable combinations of flow rate and pressure to optimise droplet transport and penetration according to crop type and canopy geometry.

Benefits

• Shorter application time per hectare
• Lower product consumption
• Improved treatment coverage and penetration
• Better cost efficiency per hectare
• Reduced drift and off-target exposure

Available models and main characteristics

• Eolo gte10
• For large trees and extensive plots
• Faster applications to cover more area
• Reduced product consumption
• Ø1015 mm impeller with 4 channels
• Operational speeds up to 10 km/h
• Eolo gte10a
• For tall trees and demanding planting frames
• High air pressure for deep penetration
• Ø1015 mm impeller with 3 channels
• Optimised treatment effectiveness
• Eolo star
• High-performance air unit with low power draw
• Large air flow for wide coverage
• Ø915 mm impeller with 3 channels
• Ieolo star
• Anti-clogging design to avoid leaf suction
• Low power consumption
• Large air flow for consistent distribution
• Ø915 mm impeller with 3 channels
• Unic
• Balanced pressure/flow for versatile use
• Suitable for variable crop frames
• High air pressure
• Ø915 mm impeller with 2 channels
• Unic lea
• Configured for wide planting frames
• GTC9 low-consumption air unit Ø915
• High air pressure for deep penetration
• Unic bergerac
• Simultaneous treatment on four sides
• Semi-focused application mode
• Saves time, labour and product
• Improved fuel efficiency for multi-side work
• Unic st
• Entry model to start with TEYME systems
• Ø915 special blower housing
• Proportional air distribution
• 2 air channels
• Asm
• Liftmounted mistblower option
• Impeller diameters from Ø610 mm to Ø915 mm
• Air flow rates up to 75,000 m³/h
• Tank capacities from 200 l to 1,200 l
• Eolo gtx9
• Designed for homogeneous treatments
• Ø900 mm impeller with 16 directional channels
• Semi-localised application to increase efficiency
• Unic-e
• Narrow trailed machine for tight rows
• Air units Ø610 mm to Ø820 mm
• Air flow rates up to 53,500 m³/h
• Tanks from 800 l to 1,000 l

Technical specifications

• Impeller/air unit diameters observed: Ø610 mm up to Ø1015 mm
• Air channel configurations: 2, 3, 4 and multi-directional up to 16 channels
• Air flow rates examples: up to 75,000 m³/h (ASM) and up to 53,500 m³/h (Unic-e)
• Tank capacities (examples): 200 l to 1,200 l; some trailed models 800–1,000 l
• Designed for varied crop frames: high trees, wide frames, narrow rows, multi-side treatments
• Performance goals: reduce application time, reduce product consumption, increase penetration and coverage, reduce drift
• Operational example: certain models support speeds up to 10 km/h for faster coverage
