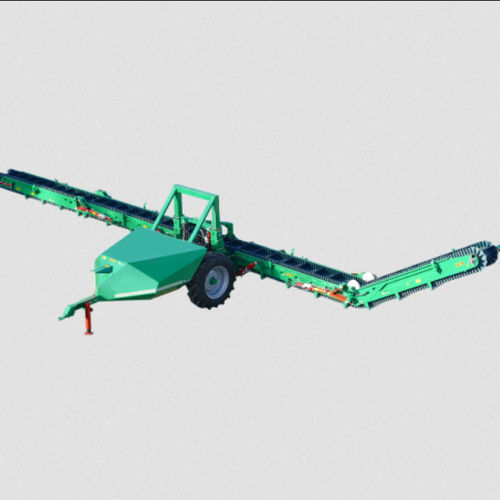

Vegetable harvesting machine FH-T4

cabbagefruitbell pepper

Overview
The FH-T4 is a trailed large-caliber harvester for fruits and vegetables designed for medium to large-scale agricultural operations. Its individual padded-belt harvesting system improves product handling and reduces damage by approximately 50%, supporting higher marketable yields and faster field cycles.

Crops

• Broccoli
• Pumpkin
• Cabbage
• Melon
• Pepper
• Watermelon

Features

• Trailed equipment with hydraulic pump driven from tractor PTO (cardan)
• Individual harvesting system with high-quality padded belts
• Harvesting rate: 80–90 fruits per minute
• Side unloading system onto trailer (gooseneck structure)
• Hydraulically adjustable working height
• Curb weight: 4000 kg
• Tractor requirement: >80 hp
• Maximum product weight handled: 12 kg

Productivity

• Approx. +50% improved product care and reduced damage
• Approx. +30% increase in collected product (kg/h)
• Approx. -30% reduction in harvesting staff required

Productivity example (comparison)
Scenario | Manual | FH-T4
Crop | Melon | Melon
Required staff | 12 | 8
Tractor | 1 | 1
Harvesting staff | 9 | 5
Crates handling staff | 2 | 2
Harvesting time | 9 h | 6 h
Collected tonnes | 21 | 21

Settings

• Working width: 12–16 m
• Hydraulic maneuvers with pump fed by tractor via cardan
• 2 straight wheels
• Control panel in tractor cab with disconnect cable
• Control command on the unloading area
• Folding of the equipment in 2 sections (transport height can exceed 3.5 m)
• Gooseneck structure for side unloading on trailer

Specifications

• Curb weight: 4000 kg
• Tractor requirement: >80 hp
• Maximum product weight handled: 12 kg
• Harvesting speed: 80–90 fruits per minute
• Working width: 12–16 m
• Hydraulic pump driven from tractor PTO (cardan)
• Hydraulically adjustable height
• Folding in 2 sections (transport height can exceed 3.5 m)
• Unloading: side unloading on trailer (gooseneck structure)
• Wheels: 2 straight wheels
• Harvesting system: individual high-quality padded belts
• Estimated productivity improvements: +50% product care, +30% kg/h, -30% staff required
