Grain silo NBIN series

steelgalvanized steelflat-bottom

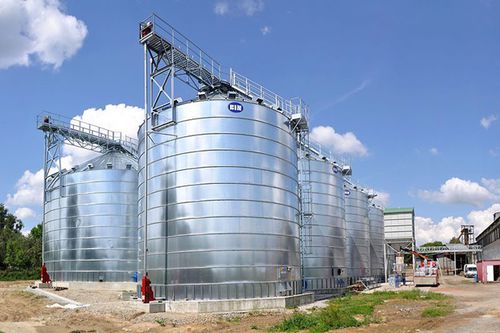

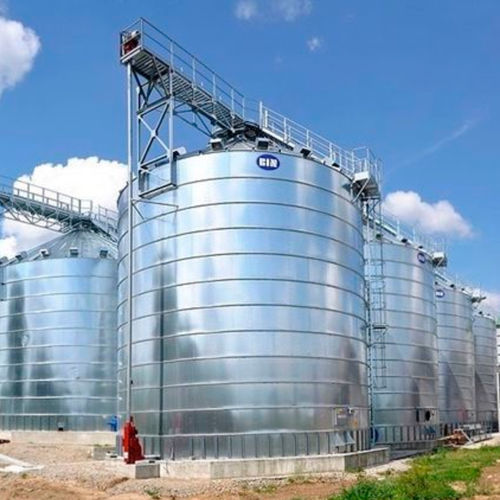

Galvanized grain silos from the Polish manufacturer BIN are an excellent choice for storing harvested grain in smaller and medium-capacity silos. It is a cylindrical prefabricated grain bin assembled from smooth, hot-dip galvanized steel sheets of Finnish production. The individual silo plates are connected by high-strength bolts and the joints are sealed against the ingress of outside water. The thickness of the perimeter plates for NBIN 501 and above is uniform throughout the height of the silo, i.e. 2 mm. Internal vertical bracing is installed to secure the silo structure vertically. The roof structure of the BIN silos is robust to easily support the walkway with stacking technology and other structures necessary for convenient access for servicing, maintenance, and visual inspection of the silos. -quality design -perforated floor -emptying by augers -rich additional equipment -galvanizing 275 g/m2 Rich equipment for easy silo operation The BIN grain silo is manufactured in a capacity range of 10 - 1,500 tonnes. The design of these silos allows for a maximum height of the cylindrical part of the silo of 13.35 m. BIN makes up for the dimensional limitations of its design by the rich basic equipment of the silo, which includes, above all, a perforated all-mesh floor (perforations for storing rape are a matter of course) laid on prefabricated concrete blocks. A comfortable and sturdy spiral staircase, an exit ladder with a protective basket, an internal ladder, a roofed staircase with handrail, and, last but not least, sufficiently large inspection and entry inspection openings in the lower part of the silo and in the roof are used for the smooth operation of the silos.
