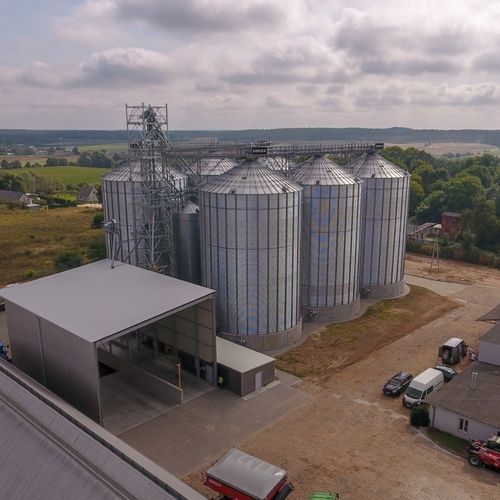

Grain silo AGI FRAME

for maizefor wheatfor soy

Product overview
AGI FRAME is one of the largest and most recognized manufacturers of all types of corrugated steel silos for both farm and industrial applications. The wide range of FPN and FPS flat-bottom silo models, with diameters from 3.64 to 32.74 meters, can meet virtually any end user’s requirements. The standard 30° roof slope ensures maximum storage capacity even for materials with high angles of repose.

Applications
Suitable for all free-flowing grains including wheat, corn, barley, rapeseed, soybeans, rice, sunflower seeds, and for materials such as wood pellets.

Accessories and supporting structures

• Aeration ducts or full-floor aeration systems
• Passive roof ventilation openings
• Roof exhaust fans (anti-condensation)
• Catwalks in various widths and configurations
• Sweep augers
• Wind rings for structural reinforcement
• Side gravity outlets and other accessories
• Service platforms
• Cascades for fragile materials to reduce free-fall damage during loading
• Snow guards on the roof
• Support towers
• Option for perimeter roof ventilation
• External ladders with safety cages, internal ladders, spiral staircases, and roof stairs with handrails

Materials and coatings
All silos (flat-bottom and hopper-bottom) are made from narrow- or wide-corrugated galvanized sheets with a standard zinc coating of 600 g/m². Roof panels feature a Magnelis protective finish for enhanced durability. Products comply with European standards including CE certification and Eurocode design parameters.

STEEL SHEET FOR FPN-TYPE SILOS – “Narrow Corrugation Sheet”

• Steel grade: HX420LAD+Z, hot-dip galvanized 600 g/m²
• Corrugation pitch: 67.7 mm × depth: 12.7 mm
• Sheet thickness: 0.8 mm – 5 mm
• Sheet size: 3001.5 mm × 880 mm
• Perforation pattern: according to structural requirements

STEEL SHEET FOR FPS-TYPE SILOS – “Shallow Corrugation Sheet”

• Steel grade: HX420LAD+Z, hot-dip galvanized 600 g/m²
• Corrugation pitch: 101.6 mm × depth: 11.4 mm
• Sheet thickness: 0.8 mm – 5 mm (option for double lamination)
• Sheet size: 3001.5 mm × 1117.6 mm
• Perforation pattern: according to structural requirements

Technical data sheet
Silo Model | FPN 04–36 | FPS 04–36
Diameter (m) | 3.64 - 32.74 | 3.64 - 32.74
Storage capacity (t) | 31 - 22 164 | 30 - 21 752
Volume (m3) | 40 - 28 416 | 39 - 27 887
Overall height (m) | 4.55 - 40.14 | 4.38 - 39.51

Features / technical specifications

• Product family: AGI FRAME Grain Silos
• Standard roof slope: 30°
• Materials: narrow- or wide-corrugated galvanized sheets
• Standard zinc coating: 600 g/m²
• Roof finish: Magnelis (protective finish)
• Steel grade (sheets): HX420LAD+Z
• FPN corrugation: 67.7 mm pitch × 12.7 mm depth
• FPS corrugation: 101.6 mm pitch × 11.4 mm depth
• Sheet thickness range: 0.8 mm – 5 mm (double lamination option for FPS)
• Typical sheet sizes: FPN 3001.5 × 880 mm; FPS 3001.5 × 1117.6 mm
• Diameter range: 3.64 m – 32.74 m
• Storage capacity ranges: FPN 31 – 22 164 t; FPS 30 – 21 752 t
• Volume ranges: FPN 40 – 28 416 m3; FPS 39 – 27 887 m3
• Overall height ranges: FPN 4.55 – 40.14 m; FPS 4.38 – 39.51 m
• Compliance: CE certification and Eurocode design parameters
