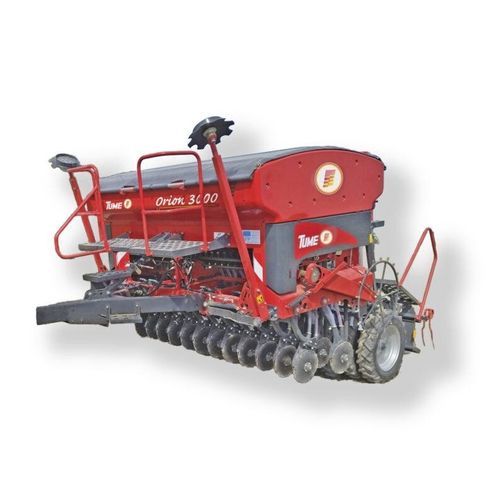

Mechanical direct seed drill Orion
disc3-point hitchtowed

mechanical direct seed drill
mechanical direct seed drill
mechanical direct seed drill
mechanical direct seed drill
mechanical direct seed drill
mechanical direct seed drill
mechanical direct seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
mechanical
Type
disc
Other characteristics
3-point hitch, towed, depth control, with harrow
Working width

300 cm, 400 cm
(118.11 in, 157.48 in)

Weight

3,450 kg, 4,450 kg
(7,605.9 lb, 9,810.6 lb)

Seed hopper volume

Min.: 1,545 l
(408.1 gal)

Max.: 3,430 l
(906.1 gal)

Fertilizer hopper volume

Min.: 1,545 l
(408.1 gal)

Max.: 3,430 l
(906.1 gal)

Description

The expected new ISOBUS machine Tume Orion has combined features from Tume’s current seed drill models, resulting in a truly competitive and versatile model for different sowing conditions. Basically, the machine is intended for traditional or lightly modified seed fertilization. However, Orion’s wide coulter weight range (20–125 kg) also enables you to sow directly into the stubble on soft soils. With the help of the optional accessory Cultipack cultivator, direct seeding is possible with even more versatile types of soil. Coulters The biggest advantage of the machine is its wide frame with 12.5 cm row spacing. All of Orion’s soil-working parts rotate, so the machine’s structure is non-clogging and the traction resistance is among the lowest in its size class. Fuel is saved and the work goes smoothly even with a smaller tractor. In addition to this, coulter’s profile has been designed in such a way that it retains the working depth. As the working depth changes from two centimeters to six centimeters, coulter’s cross-sectional area in relation to the ground increases more than fourfold! Coulter pressure and thus the final working depth is determined by changing the height of the machine. The bottom limit of the machine can be adjusted as desired, so that the sowing depth does not get too deep. The special strength of the coulters comes from its geometry and trajectory, which enables successful sowing even after the most modest sowing treatment. When hitting an obstacle, the coulter goes up the rear slope well, and at the pothole, it drops down the front slope accordingly. After an obstacle or a pothole, the paddle returns to the adjusted position.
