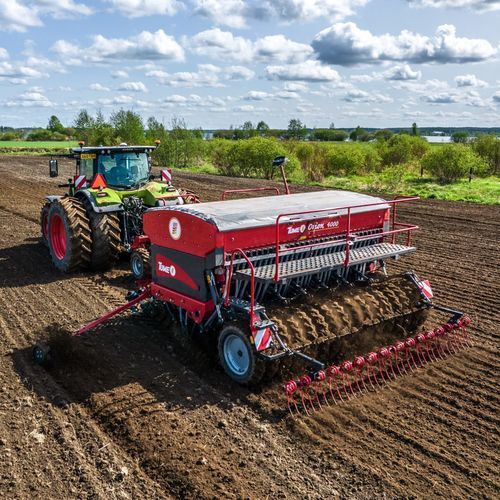

Mechanical seed drill Super Orion

disccoultergrass

Product Overview
The Super Orion is a modern seed and fertilizer drill with an electric feeding system, designed to meet the needs of today’s farming and ready for the challenges of the future. The Super Orion features a high-precision feeding unit with a reliable electric feed, ensuring excellent sowing accuracy in all conditions. Each feeding shaft is driven by two electric motors. Half-width control can be activated easily from the operator terminal or automatically via section control. The drill maintains a uniform sowing result, as it automatically adjusts the feed rate while turning—reducing output on the inside of the turn and increasing it on the outside.

Rate control is standard through motor speed adjustment, offering a wide dosing range. The calibration test can be performed conveniently at the press of a button, speeding up setup. The machine also includes small seed equipment, ensuring precise dosing for small seeds such as grass and oil crops. With ISOBUS control, the system supports variable rate maps and section control.

Additionally, the Super model features an electrically controlled feed output for external accessories, such as work lights, activated directly from the terminal.

Precise Working Depth
Orion’s double disc coulter is designed to maintain working depth. The deeper the coulter goes, the greater the resistance towards the ground.

Wide Range of Motion
The strength of Orion’s coulters is its geometry and exceptionally wide range of motion both up and down. This enables successful sowing even after a more modest sowing treatment.

Spacious and Adaptive Support Wheels
Support wheel row is very spacious, follows the ground surface and compacts the ground across the entire width of the machine, including obstacles and potholes. When driving on field roads, the machine does not wobble and the optional hydraulic suspension of the wheels guarantees stable movement on uneven roads.

Standard Accessories

• Front and rear platforms
• Small seed equipment
• Fertilizer screens
• Self-rolling tarpaulin cover
• Adjustable partition wall
• Towing from tractor drawbar
• Calibration test equipment
• Four tank drain valves
• Lights
• ISOBUS compatibility
• Remote control for seed and fertilizer
• Tramline switches for seed and fertilizer
• Hopper sensors

NOTE! The standard equipment does not include an ISOBUS terminal.

Optional Accessories

• Hydraulic markers: Makes the driving line for next pull, don’t need to estimate.
• Intermediate wheel packer: Press the field surface between the tractor wheels.
• Agitator for fertilizer and seed: Ensure the material flow to feeding units.
• Hydraulic front levelling board: Finish the surface of the field for drilling.
• Updated HS or HST unit
• Cultivator drawbar for CultiPack disc harrow for combined sowing
• CultiPack disc harrow: Harrowing work simultaneously with drilling.
• Reversing and hopper cameras
• ISOBUS display 7” or 12” and retrofit kit: Can be used like a regular control computer in all tractors.
• Hydraulic rear harrow: Enables the half-lift function of the seed drill. Allows headland cultivation to prevent soil compaction and crusting.

Technical Specifications (Comparison Table)
Working width cm
Orion 3000: 300
Orion 4000: 400
Transport width, cm*
Orion 3000: 298
Orion 4000: 398
Filling height, cm
Orion 3000: 240
Orion 4000: 240
Length, cm*
Orion 3000: 605
Orion 4000: 605
Weight (empty), kg*
Orion 3000: 3450
Orion 4000: 4450
Total hopper capacity, l
Orion 3000: 4020
Orion 4000: 5570
Seed capacity min/max, l
Orion 3000: 1545/2475
Orion 4000: 2140/3430
Fertilizer capacity min/max, l
Orion 3000: 1545/2475
Orion 4000: 2140/3430
Row spacing, cm
Orion 3000: 12.5 or 16.7
Orion 4000: 12.5 or 16.7
Support wheels**
Orion 3000: 7.50–20 or 280/70-18
Orion 4000: 7.50–20 or 280/70-18
Coulter pressure/coulter max kg
Orion 3000: 125
Orion 4000: 125
Number of coulters
Orion 3000: 18 or 24
Orion 4000: 24 or 32
Hydraulic connections, minimum requirement
Orion 3000: 1×1-function
Orion 4000: 1×1-function
ISOBUS-compatible
Orion 3000: Optional accessory
Orion 4000: Optional accessory
Power requirement, kW
Orion 3000: 66
Orion 4000: 88
*Dimensions refer to the base machine. Optional equipment may affect the measurements.
**The type of wheel axle affects the available tyre options.

Characteristics / Technical Specifications

• Modern seed and fertilizer drill with electric feeding system
• High-precision feeding unit with electric feed
• Each feeding shaft driven by two electric motors
• Half-width control via terminal or section control
• Automatic feed rate adjustment while turning
• Motor speed adjustment for rate control
• Calibration test at the press of a button
• Small seed equipment for precise dosing
• ISOBUS control for variable rate maps and section control
• Electrically controlled feed output for external accessories
• Spacious support wheel row with optional hydraulic suspension
• Double disc coulter for precise working depth
• Wide range of motion for coulters
• Multiple working widths and capacities available
