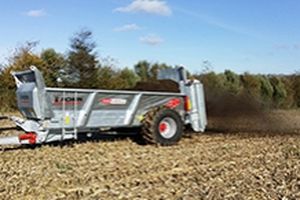

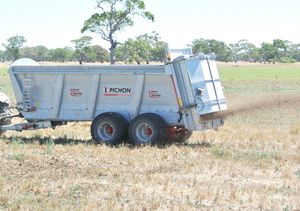

Trailed muck spreader M850, M1050, M1250
verticals beaterssingle-axle

trailed muck spreader
trailed muck spreader
trailed muck spreader
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Type of spreading
verticals beaters
Number of axles
single-axle
Capacity

8 m³, 10 m³, 12 m³
(282.5 ft³, 353.1 ft³, 423.8 ft³)

Description

The new series spreaders PICHON, specially designed for mountain areas! These spreaders have a lower center of gravity. Their useful box length is more than 5m, so the driver can load the spreader blithely put two widths of 2.50m bucket, which enables uniform loading. This case is available in several real capacity: 8m3 for the M850, M1050 and 10m3 to 12m3 for the M1250. They are galvanised in series like all models in the range. The M850 and M1050 models are equipped with 90 mm axle with hydraulic brake 400x80. The M1250 is meanwhile axle with 150 mm (hydraulic brake 420 x 180) and can turn into M1250B with option fixed bogie + steering PICHON 130 mm. Another important point in pneumatic 21.3 R 24 on the single axle versions, the ride height is lower than 2m. The PICHON spreaders becomes one of the lowest in the market. These features will allow the user to load the spreader tool with a small tractor or an articulated loader while moving safely through the fields high and wide tires. The large size of beaters, one of the many highlights spreaders PICHON, is also present on this model with a diameter of 885mm, the same diameter as the M945 / M1045 series.

Catalogs
