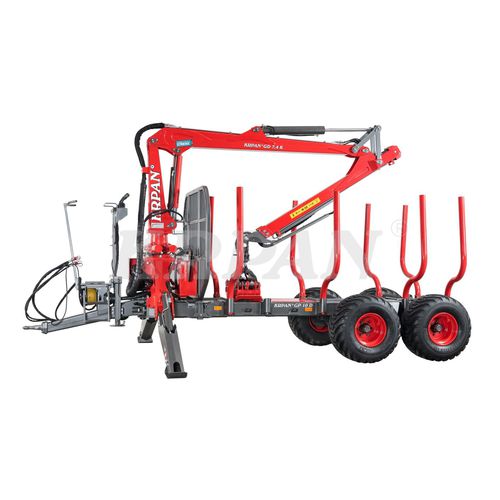

Flatbed trailer GP 10 D
mountedtandem axleforestry

flatbed trailer
flatbed trailer
Add to favorites
Compare this product


Characteristics

Construction
flatbed
Type
mounted
Number of axles
tandem axle
Application
forestry
Payload
10 ton
Brake system
with hydraulic braking, with pneumatic braking
Other characteristic
with crane
Empty weight

2,144 kg
(4,726.7 lb)

Load volume

9.9 m³, 11.8 m³
(349.615 ft³, 416.713 ft³)

Loading case lenght

3,975 mm, 4,755 mm
(156.5 in, 187.2 in)

Loading case width

2,015 mm
(79.3 in)

Loading case hight

1,560 mm
(61.4 in)

Description

Standard equipment Wheels 400/60-15,5; 20 layer tires/ hand brake / loading area extension / hydraulic frame setings / LED rear lights /wedges / steerable drawbar with steering angle +- 40˚ / support leg / P.T.O. Shaft Walterscheid WWE 2480-SDF25-910 / wood pick and axe holder / chainsaw holder / canister holder / tool box *THE FORESTRY TRAILER CAN BE COMBINED WITH CRANES GD 6,4 K, GD 7,4 K, GD 8,6 K, GD 7,2 Z or GD 8,4 Z OPTIONAL EQUIPMENT: Wheels 500/50-17; 18 layer tires, Combination brakes on all 4 wheels, 2WD or 4 WD inner drum drive - BB4 (with double cast-iron pump, double circuit control valves), Additional stakes, Towing eye ball coupling system K 80* Towing eye Ø 50* Brushwood Bin Bale trailer platform Platform Hydraulic support leg Tehnical features Central Beams:2/200x100x6 mm Total Length (with Extension) / Width:6334 (7114) / 2220 mm Tires Alliance 400/60-15,5; 16 Layers - / Tires BKT 400/60-15,5; 18 Layers:Standard Tires Alliance 480/45-17; 14 Layers:Optional Tires BKT 500/50-17; 18 Layers:Optional Tires BKT 400/55-22,5; 20 Layers - / Tires BKT 550/45-22,5; 20 Layers - / No of Frame Steering Cylinders:2 Drawbar Angle:+,- 40 ° Combined Brakes on All 4 Wheels (pneumatic + hydraulic):Optional Combined Brakes on All 4 Wheels (overrun brake + hydraulic) - / Dual-Circuit Hydraulic Brake System - / 2WD or 4WD Inner Drum Drive:Optional BB4 ** Stakes (Pair):4
