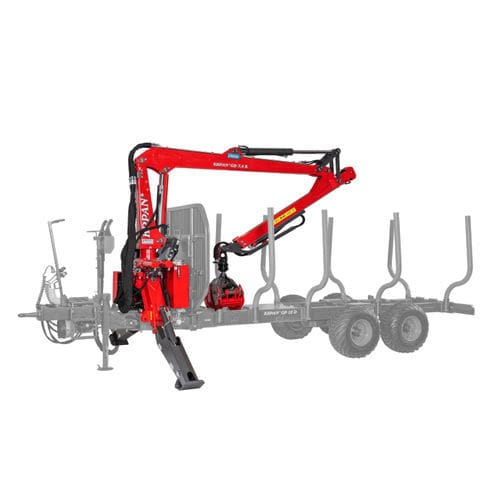

Log loader GD 7,4 K

Crane rotating gear in oil bath / support legs ''flap down'' / rotator 45 kN / grab GR 130 / self sufficient hydraulic system with cast iron pump - hydraulics group 3 / oil cooler/ proportional hydraulic (low-pressure) joystick control / large oil tank with 100 l capacity / standing platform / control lever protection / operating hours counter - pressure Tehnical features Lifting Torque net:63 kNm Lifting Torque gross:80 kNm Weight:1516 kg * Slew Torque:22 kNm Slewing Angle:380 ° System Pressure:230 bar Oil Quantity in Tank:100 l Slew Cylinders:4 Telescopic Stages:1 Support Legs (A or "flap down") by choice:"flap down" Crane Rotating Gear in Oil Bath:Standard Self Sufficient Hydraulic System with Pump:Standard 3 Point Linkage:Optional Control with Mechanical Joysticks:Optional Cross Lever Control with el. ON/OFF Functions:/ Prop.-hydraulic (low pressure) Joystick control:Standard Control with Proportional Electrical Joysticks:Optional High Seat Control:Optional Radio Remote Control:Optional ** Control Lever Protection:Standard Double Cast-Iron Pump (tandem) with Double Circuit Control:Optional *** Piston Pump:/ Single Flow Piston Pump with Multiplier:Optional Double Flow Piston Pump with Double Circuit Control:Optional LS Tractor System without its Own Hydraulic System:Optional Oil Cooler:Standard Rotator 30 kN (optional with flange):/ Rotator 45 kN (optional with flange):Standard Rotator 55 kN (optional with flange):Optional Flange Rotator 45 kN / 55 kN:Optional Grab GR 120 with Flange:/ Grab GR 130:Standard Grab GR 150:Optional Profi Grab GR 20 / GR 24 / GR 24 BIO / GR 30 or GR 38:Optional Swing Damper (single / double):Optional Operational LED Lights:Optional
