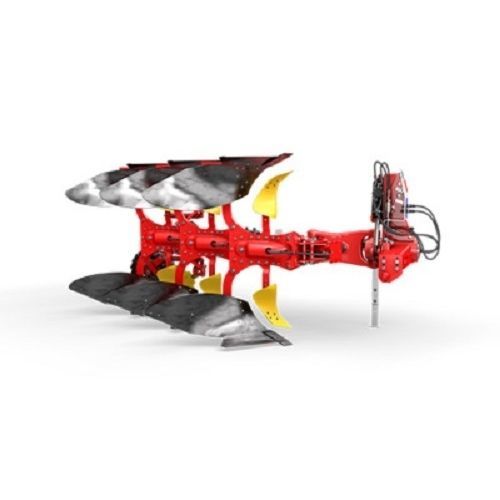

Mouldboard plough SERVO 4000 series

mounted1-10 shankwith hydraulic adjustment

A straightforward and intuitive control centre, an extremely robust turnover mechanism and a durable plough beam as well as optimised mounting geometry, these are all essential factors that were taken into account during the development of the SERVO 4000. Teamed up with proven mouldboards, these ploughs have been engineered to deliver perfect working results year after year. Simplified set-up The newly designed SERVOMATIC control centre with four-joint linkage makes it even easier and quicker to set up the plough correctly and adjust it to your tractor. Beam angle, front furrow width and pulling point can be adjusted in just a few steps. All the necessary adjustment points are easily accessible and finely adjustable. The hydraulic furrow width adjustment on SERVO PLUS ploughs enables quick adaptation to soil conditions. The triggering pressure of the NOVA stone protection system can be conveniently changed using the spool valve on the tractor. ■Easily accessible setting points ■PLUS - infinitely-variable furrow width adjustment ■Stone protection can be finely tuned Seamless merging between passes While designing the SERVOMATIC control centre, great importance was placed on a large adjustment range of the front furrow width. The settings cover tractor inside track widths between 1,000 and 1,500 mm. Adjustment is performed mechanically, or, as an option, hydraulically without having to leave the tractor cab. When adjusting the turnbuckle, a clearly visible scale helps to quickly find the correct position based on the inner track width of the tractor.
