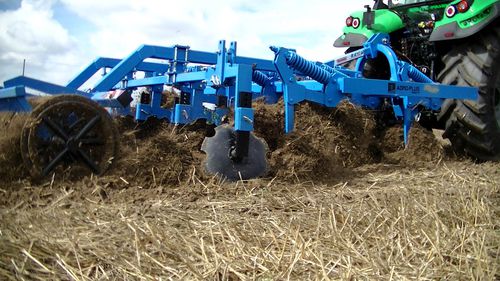

Towed field cultivator TOP series
3-point hitchwith hydraulic adjustmentfixed

towed field cultivator
towed field cultivator
towed field cultivator
towed field cultivator
towed field cultivator
towed field cultivator
towed field cultivator
Add to favorites
Compare this product


Characteristics

Mobility
towed
Other characteristic
3-point hitch, with hydraulic adjustment, fixed
Width

Max.: 6 m
(19'08" )

Min.: 2.5 m
(8'02" )

Working depth

Max.: 30 cm
(11.8 in)

Min.: 0 cm
(0 in)

Description

The TOP cultivator is an alternative for two-beam stubble cultivators. Short cutting plough shares placed in three rows and 465 mm diameter notched discs suspended on the roller’s frame, ensure perfect mixing of post-harvest remains. High clearance between the frame and the ground (approximately 80 cm) allows operation even on high cut stubble of cereals or maize without the risk of clogging the machine. The TOP cultivator can be employed in post-harvest and deep cultivation (up to 30 cm when wing shares removed) as well as in sowing aftercrops. TOP-S version is equipped with a double protection spring protection mechanism that improves its work during deep cultivation on a stony fields. As with all our cultivators, wide range of rollers is available as an option.
