Self-propelled manure spreader 2FGH series

verticals beaterscrawler

Product overview

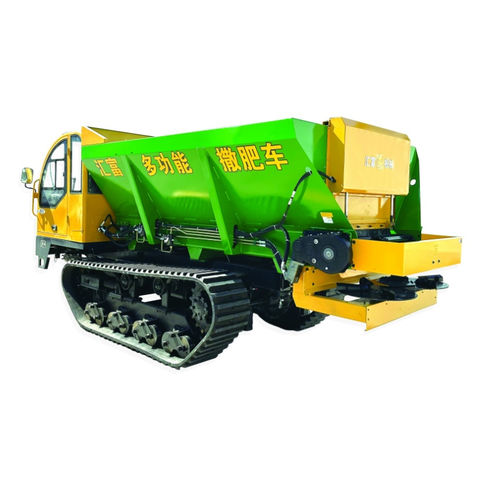

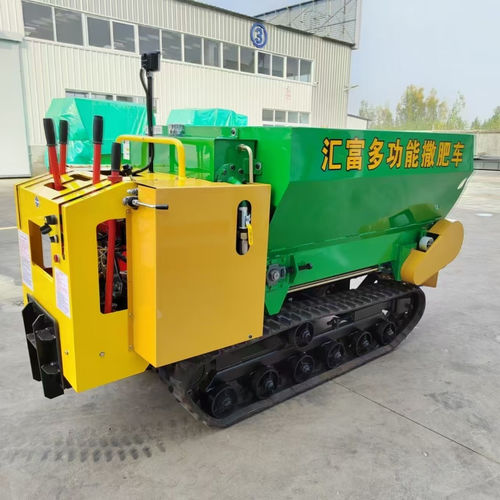

Self-propelled crawler manure spreader designed for narrow or difficult-to-access fertilization areas. Available in 1 m³, 3 m³ and 5 m³ hopper capacities and typically fitted with a Yunnei 490/4102 turbocharged diesel engine. The crawler undercarriage provides traction on rice paddies, marshes, muddy tracks, mountain roads, soft pastures, sandy ground and snow/ice surfaces.

Machine features

• Yunnei 490/4102 turbocharged diesel engine (configured).
• Dedicated 4-speed gearbox with high/low range.
• Heavy-duty rear axle designed for high bearing loads.
• Engineering-grade tracks: wear-resistant and long service life.
• Adjustable fertilizer rate and controllable spreading width.
• Specialized reducer for smooth, even delivery and hydraulic motor protection.
• Adjustable hopper gate and enlarged double-disc for uniform distribution without leakage.
• Chain-scraper push conveyor; can be used for on-site transport.

Technical parameters
No. | item | unit | 1m³ | 3m³ | 5m³
1 | Model | / | 2FGH-1LD | 2FGH-3LD | 2FGH-5LD
2 | Hopper capacity | m³ | 1 | 3 | 5
3 | Supporting power | hp | 15 | 80 | 115
4 | Spreading width | m | 6-16 | 6-16 | 6-16
5 | Overall dimension | mm | 2710*1200*1380 | 4200*1850*2000 | 5140*2200*2400
6 | Spreading device | / | double disc | double disc | double disc
7 | Crawler | mm | 230*72*49 | 400*90*62 | 450*90*70
8 | Ground clearance | mm | 300 | 300 | 300
9 | Fertilizer conveying method | / | Chain Scraper Push | Chain Scraper Push | Chain Scraper Push

Applications & specifications

• Series/models: 2FGH-1LD, 2FGH-3LD, 2FGH-5LD.
• Hopper capacities: 1 / 3 / 5 m³.
• Recommended power: 15 hp (1 m³), 80 hp (3 m³), 115 hp (5 m³).
• Adjustable spreading width: 6–16 m for all variants.
• Dimensions and crawler sizes vary by model (see Technical parameters).
• Suitable for dry/wet manure, sticky manure, organic and compound fertilizers; also suitable for site transport tasks.
