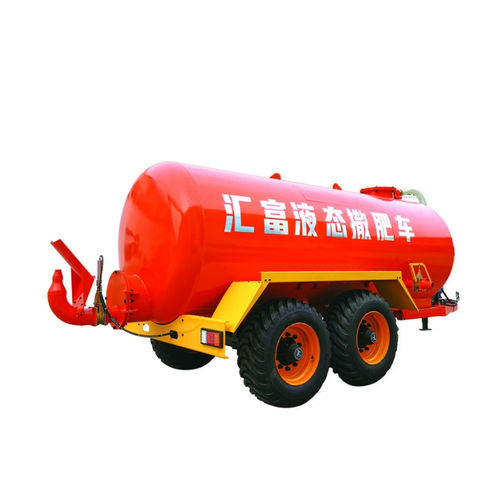

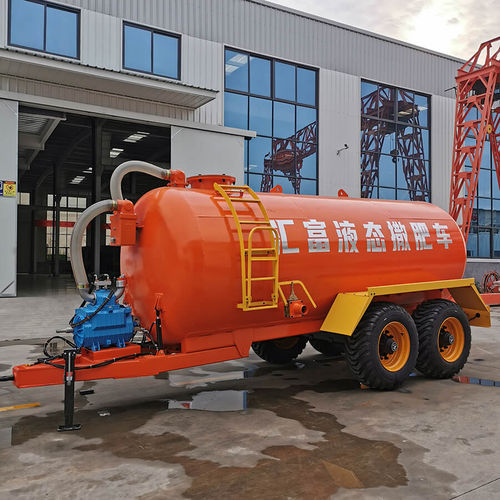

2-axle slurry spreader 2FYP series

single-axletowed

Function introduction

• Precision fertilization: accurately and uniformly applies liquid fertilizer to fields according to set rates, ensuring even nutrient distribution and reducing variability from manual application.
• Adjustable application depth: allows adjustment of the fertilizing components to place nutrients in the root zone according to crop type and growth stage, improving uptake.
• Multiple application modes: supports strip and point application patterns to match planting layouts and agronomic needs; enables targeted placement near roots.
• Irrigation integration: selected models can connect to irrigation systems for combined water-and-fertilizer operations (fertigation).

Advantages

• Improved fertilizer use efficiency: delivers liquid fertilizer closer to roots, reducing volatilization and losses and increasing crop uptake.
• Soil structure protection: liquid application minimizes local compaction and nutrient hotspots, supporting permeability and soil biological activity.
• Labor and time savings: mechanized operation is suitable for large areas and reduces manual work.

Slurry Tanker technical parameters
No. | Item | Unit | 6m³ | 8m³ | 12m³
1 | Model | / | 2FYP-6 | 2FYP-8 | 2FYP-12
2 | Tanker capacity (L) | m³ | 6000 | 8000 | 12000
3 | Supporting power | hp | ≥60 | ≥90 | ≥120
4 | Spreading width | m | ≥10 | ≥10 | ≥10
5 | Overall size | mm | 5900*2248*2033 | 6122*2248*2033 | 7480*2560*2720
6 | Number of load-bearing axle | pc | 1 | 1 | 2
7 | Tire | / | 16/70-20 | 16/70-20 | 400/55-22.5
8 | Fertilizer spraying method | / | Rear nozzle spraying | Rear nozzle spraying | Rear nozzle spraying
9 | Tire no. | pc | 2 | 2 | 4
10 | Fertilizer control system | / | Hydraulic | Hydraulic | Hydraulic
11 | Structure form | / | Tanker | Tanker | Tanker
12 | Hitch type | / | Pull behind | Pull behind | Pull behind
13 | Tanker material | / | Hot-dip galvanized high-strength steel | Hot-dip galvanized high-strength steel | Hot-dip galvanized high-strength steel
14 | Tanker size | mm | 4000*φ1600 | 4262*φ1612 | 4900*φ1650
15 | Drive type | / | Rear output power of tractor | Rear output power of tractor | Rear output power of tractor

Precautions for use
Before operation

• Equipment inspection: check pipes, nozzles, valves, pumps and drive components for damage, leaks or blockages; verify moving parts and couplings.
• Tank cleaning: thoroughly clean the tank to remove debris and residues before filling to avoid contamination and pipeline blockages.

During operation

• Fertilizer selection: use liquid fertilizers compatible with the equipment regarding concentration, viscosity and pH; avoid overly viscous products or those containing impurities that may clog nozzles.
• Maintain consistent speed: keep a steady field speed to ensure uniform application.
• Monitor operation: observe spraying pattern, noises and vibrations; stop and address nozzle blockages or leaks promptly.

After operation

• Equipment cleaning: rinse tank, pipelines and nozzles with clean water to remove residues and prevent corrosion.
• Proper storage: store the tanker in a dry, ventilated place away from direct sunlight and rain; apply corrosion protection to exposed parts as needed.

Characteristics / technical specifications

• Model series: 2FYP-6, 2FYP-8, 2FYP-12
• Capacities: 6000 L, 8000 L, 12000 L
• Required tractor power: ≥60 hp (6m³), ≥90 hp (8m³), ≥120 hp (12m³)
• Spreading width: ≥10 m
• Overall dimensions: 5900×2248×2033 mm (6m³); 6122×2248×2033 mm (8m³); 7480×2560×2720 mm (12m³)
• Load-bearing axles: 1 (6m³/8m³), 2 (12m³)
• Tires: 16/70-20 (6m³ & 8m³); 400/55-22.5 (12m³)
• Spraying method: rear nozzle spraying; control: hydraulic
• Structure: tow-behind tanker; material: hot-dip galvanized high-strength steel
• Drive: rear output power of tractor (PTO)
