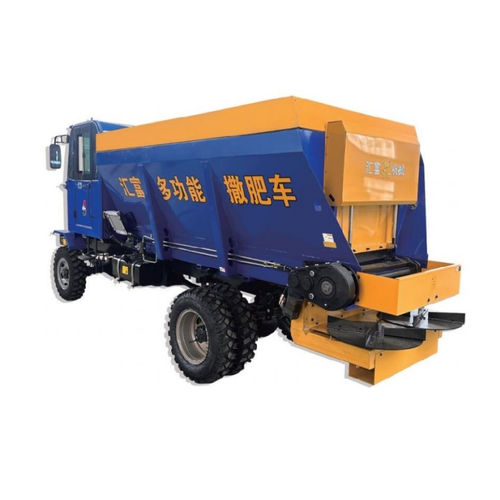

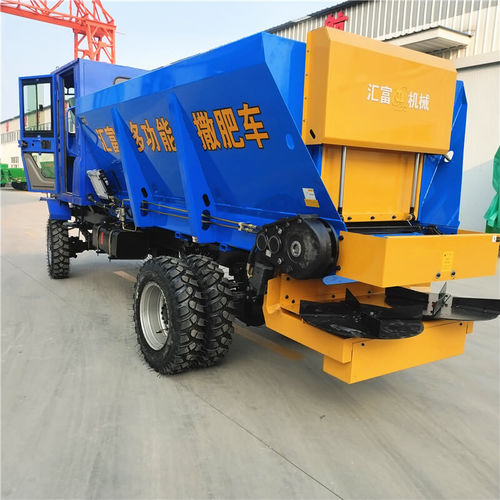

Self-propelled manure spreader 2FGH-5YD

truck-mounted2-axlecompact

Product Description:
The four-wheel drive self-propelled truck manure spreader features a compact structure, wide applicability, uniform spreading and efficient operation. Driven by the engine, an onboard conveyor chain automatically transports material to the rear while a high-speed rotating disc distributes fertilizer evenly. Suitable for large-scale farms, grasslands, ranches and road maintenance, it handles manure, organic fertilizer, lime, distiller's grains, sugar residue and granular fertilizers. Hopper capacity and spreading rate can be customized to match operational needs and improve fertilization efficiency.

Machine features:
Equipped with a 490 turbocharged engine and a fully enclosed cab, the unit provides part-time four-wheel drive and a 10-speed heavy-duty axle for strong load capacity. The enlarged 5 m³ hopper and reducer-driven heavy-duty chain-scraper ensure stable material conveyance. A direct hydraulic fertilizer outlet allows adjustable application rate; large double discs deliver even distribution with minimal leakage. Designed for both wet and dry organic materials in field applications.

Technical Parameter:
Truck manure spreader technical parameter
No. | item | unit | value
1 | Model | / | 2FGH-5YD
2 | Hopper Capacity | m³ | 5
3 | Supporting Power | hp | ≥85
4 | Spreading Width | m | 6-16
5 | Overall Dimension | mm | 5800*1800*2400
7 | Spreading Device | / | Double disc
8 | Tire | / | 7.50-16
9 | Tire No. | pc | 6
10 | Fertilizer conveying method | / | Chain Scraper Push

Specifications:

• Model: 2FGH-5YD
• Hopper Capacity: 5 m³
• Supporting Power: ≥85 hp
• Spreading Width: 6-16 m
• Overall Dimension: 5800*1800*2400 mm
• Spreading Device: Double disc
• Tire: 7.50-16
• Tire No.: 6 pc
• Fertilizer conveying method: Chain Scraper Push
